Request a Quote

The 1000-5000ml liquid filling machine for high viscosity liquid bottles such liquids as fertilizers, dishwashing soap, detergents, softeners, and other high viscosity liquids. With precise and accurate filling, the high viscosity liquid filling machine is PLC controlled and easy to operate. Used in the food, pharmaceutical, cosmetic, and chemical industries, the bottle filling machine does not bubble up or overflow when filling.

Main performance parameters:
  • Capacity: ≤2500 bottles/hour (1000ml as medium)
  • Bottle Type: Round Bottle Diameter: Φ60-140mm, Height: 100-340mm(L x W x H)
  • Diameter of bottle opening: ≥φ25mm
  • Filling range: 1000-5000ml
  • Precision: (200ml) ±1% ;(200ml-1000ml)±0.5%
  • Air pressure: 0.6~0.8 MPA
  • Air consumption: 120L/minute
  • Power Source: ~380V, 50HZ
  • Power: 2.5KW
  • External Dimensions: 2440 x 1150 x 2300mm(L x W x H)
  • Weight: About1850Kg
  • Production line height: 900mm±50mm
  • Filling materials: SC, pesticide, fertilizer, and other viscous liquids
  • Bottle feeding direction: From left to right
Features:

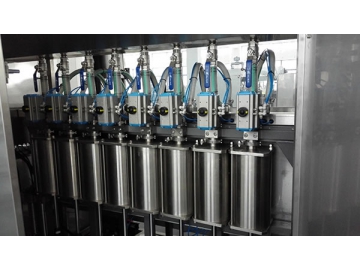

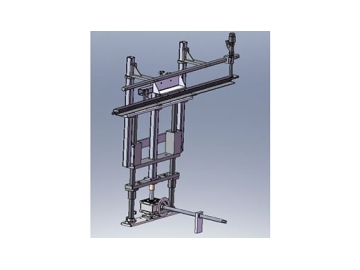

1. High precision filling thanks to PLC control. Adjustable settings for volume, filling speed, etc. Separate ball screws link guide pillars and lifting beams.

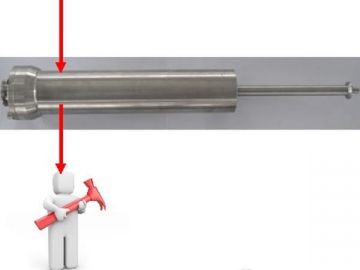

2. Filling heads can be finely adjusted for accurate filling.

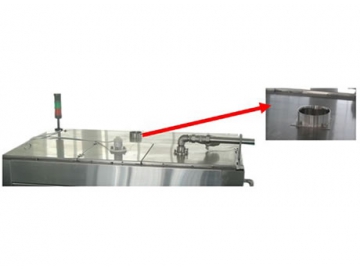

3. Sensors alert to too high or to low levels and filling automatically stops before overflowing.
Imported components from trusted brands for reliability and long service life.

4. Automatic bottle feeding and counting.

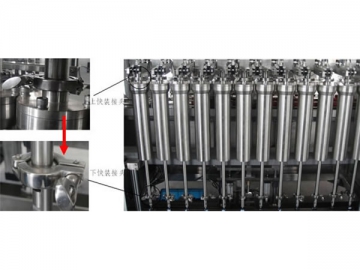

5. Easy to clean and dissemble. Single row of cylinders decreases pollution or leakage when cleaning.

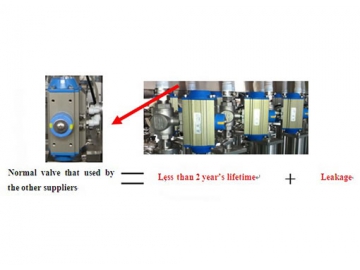

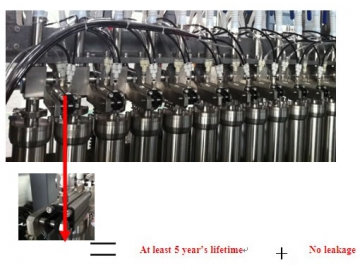

6. Three-way valve for pesticide filling prevents any leakage and extends service life.

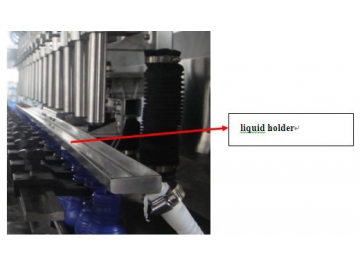

7. Reduced foaming. Liquid holder prevents bottle from being filled when the filling nozzle is off.

8. New explosion-proof filling lancers.

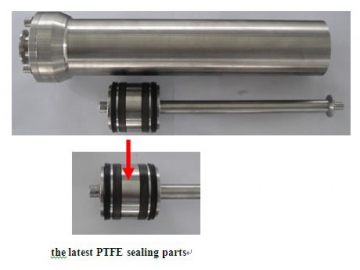

9. PTFE sealing parts improve abrasion resistance and stainless steel 304 structure prevents corrosion. Glass door prevents pollution.

10. Filling machine automatically stops if bottles are jammed or fall.

  • Electronic control system composed of parts from Schneider in France for reliability and longevity.

    Filling machine models:
    Model ZSP-6A ZSP-8A
    Dimensions 2200mm( L) x1100mm( W) x2200mm( H) 2400mm( L) x1100mm( W) x2200mm( H)
    Filling head 6 8
    Capacity( 1L) 1800B/H 2200 B/H
    Capacity( 5L) 800B/H 1000 B/H
    Power 3KW 4KW
    Suitable bottle round bottle :
    height : 100-320mm
    diameter : Φ60-140mm,

    flat bottle :
    length : 100-200mm
    width : 40-80mm
    height : 150-300mm
    neck diameter : ≤Φ30mm,≥Φ30customize
    Filling range 1000ml--5000ml
    Air pressure 0.6Mpa--0.8Mpa
    Power supply 380V ; 50HZ

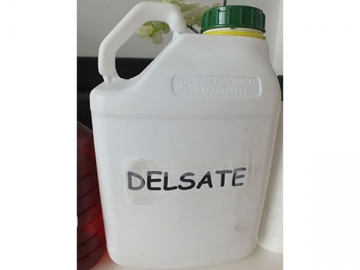

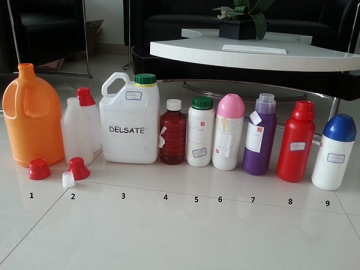

    Suitable bottles:
    Configuration:
    No. Item Supplier Brand
    1 Touch screen Taiwan WEINVEIW
    2 PLC Japan Mitsubishi
    3 Photo sensor for bottles Japan OPTEX
    4 Solenoid valve Taiwan SHAKO
    5 Level button Mexico JOHNSON CONTROLS
    6 Angle seat valve Jointed BURKERT
    7 Diving cylinder Taiwan AIRTAC
    8 Power button France Schneider
    9 Button France Schneider
    10 Frequency converter France Schneider
    11 Magnetic switch Taiwan AIRTAC
    12 Oil-water separator Taiwan SHAKO
    13 Speed reducer China Jiao xing
    14 Relay Japan Omron
    15 Servo motor France Schneider
