Application

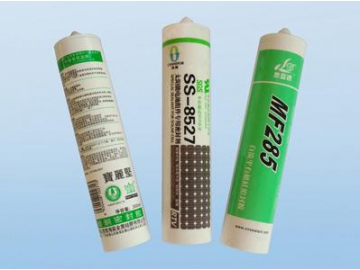

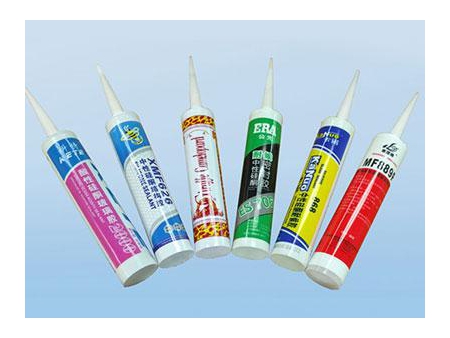

The horizontal high viscosity filling machine is mainly used to fill high viscosity materials in plastic cartridges and paper tubes, like silicone sealant, photovoltaic sealant and so on.

Description

Adopting horizontal filling and horizontal end cap sealing, both operations are completed manually. Composed of a volume filling mechanism and plunger inserting mechanism, this filling machine is an economical choice.

Technical parameters
Filling speed 30-40 cartridges/min.
Filling accuracy ±1g/300ml
Filling range 240ml-320ml (customization is offered for larger capacity)
Overall power 7.0KW
Gas pressure 0.7MPa
Gas consumption 90L/min
Working pressure of hydraulic system 6-8Mpa
Hydraulic cooling mode air cooling
Machine size (L x W x H) 1600x1100x1700mm
Net weight 0.8T
Features
  • Horizontal filling

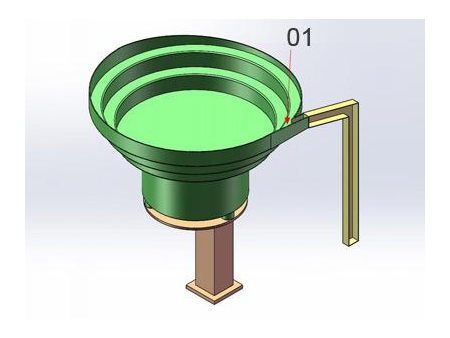

    01: Plunger sorting mechanism

    Filling volume is controlled manually. After filling, utilize the bottle opening to clean the filling nozzle.

  • Horizontal capping

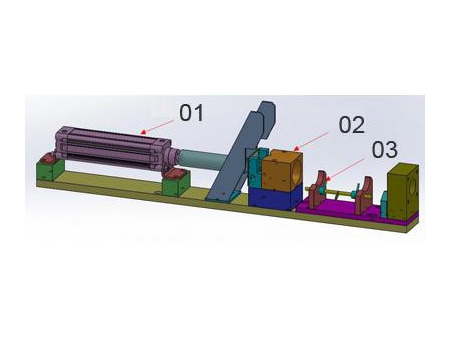

    01: Plunger inserting mechanism
    02: Plunger mould
    03: Cartridge position

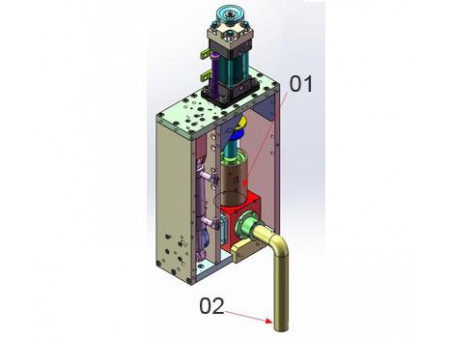

    01: Metering mechanism
    02: Filling sealant outlet
    With built in gas discharging device, it avoids bubble formation during capping operation.
