Horizontal Piston Filler (high viscosity GRQY-3500-I with sealer for Aluminum Sealant Cartridge)

Horizontal Piston Filler  (high viscosity GRQY-3500-I with sealer for Aluminum Sealant Cartridge)
Horizontal Piston Filler  (high viscosity GRQY-3500-I with sealer for Aluminum Sealant Cartridge)
Horizontal Piston Filler  (high viscosity GRQY-3500-I with sealer for Aluminum Sealant Cartridge)
Horizontal Piston Filler  (high viscosity GRQY-3500-I with sealer for Aluminum Sealant Cartridge)
Horizontal Piston Filler  (high viscosity GRQY-3500-I with sealer for Aluminum Sealant Cartridge)
Horizontal Piston Filler  (high viscosity GRQY-3500-I with sealer for Aluminum Sealant Cartridge)
Horizontal Piston Filler  (high viscosity GRQY-3500-I with sealer for Aluminum Sealant Cartridge)
Horizontal Piston Filler  (high viscosity GRQY-3500-I with sealer for Aluminum Sealant Cartridge)
Horizontal Piston Filler  (high viscosity GRQY-3500-I with sealer for Aluminum Sealant Cartridge)
Horizontal Piston Filler  (high viscosity GRQY-3500-I with sealer for Aluminum Sealant Cartridge)
Horizontal Piston Filler  (high viscosity GRQY-3500-I with sealer for Aluminum Sealant Cartridge)
Horizontal Piston Filler  (high viscosity GRQY-3500-I with sealer for Aluminum Sealant Cartridge)
Horizontal Piston Filler  (high viscosity GRQY-3500-I with sealer for Aluminum Sealant Cartridge)
Horizontal Piston Filler  (high viscosity GRQY-3500-I with sealer for Aluminum Sealant Cartridge)
Request a Quote
Application

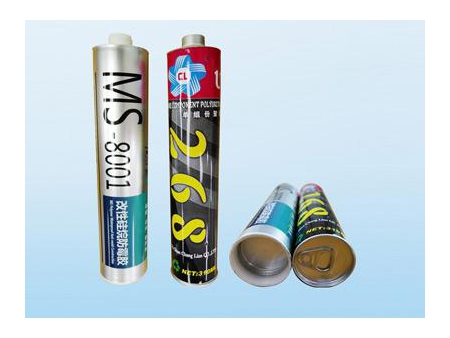

The horizontal piston filler is widely adopted for filling pastes, like polyurethane sealant, modified saline adhesive and so on.

Description

This filler is designed for products with extremely high requirements on sealing property. And it is capable of filling high viscosity liquids. Distinguished from other fillers, it can only fill aluminum cartridges, which is also related closely with the properties of the filling materials. Besides, this filler is integrated with automatic cartridge feeding, automatic plunger feeding, filling, plunger inserting, desiccant adding, cartridge closing with aluminum cap and code-printing.

Technical parameters
Filling speed 18-25 containers/min.
Filling accuracy ±1g/300ml
Filling range 200ml-320ml (larger volume can be customized)
Overall power 5.5KW
Gas pressure 0.7MPa
Gas consumption 180L/min
Working pressure of hydraulic system 7-9Mpa
Hydraulic cooling mode Water cooling, air cooling
Machine size (L x W x H) 3100x1200x2320mm
Net weight 1.5T

Note: Great can match the voltage and frequency of the equipment depending on different customer’s locations.

Structure
  • Conveying of empty bottle and plunger

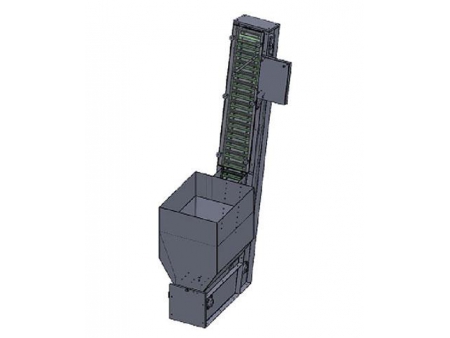

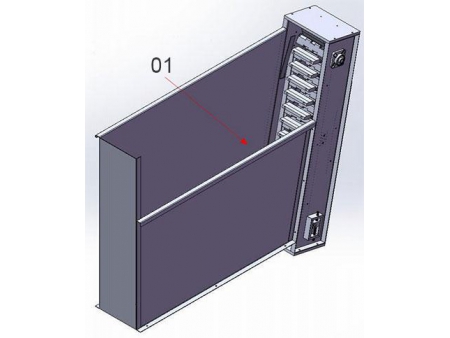

    • 01: Empty cartridges load bin

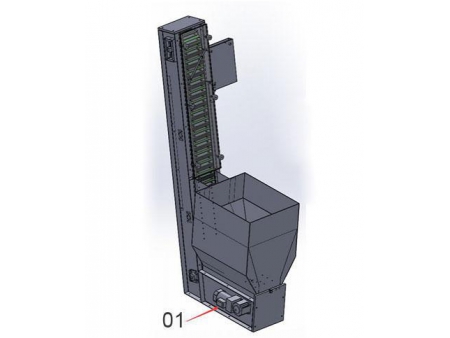

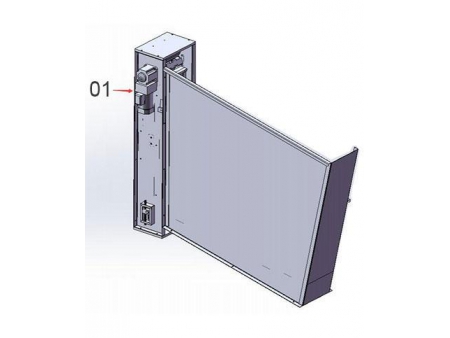

    • 01: Motor
    • 01: Motor

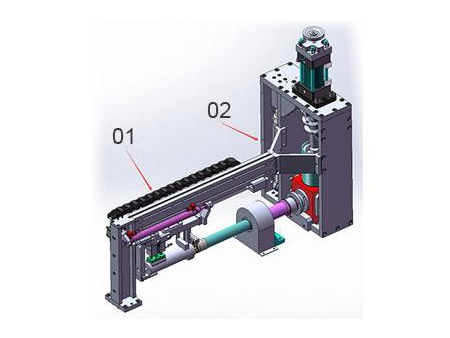

  • Conveying mechanism

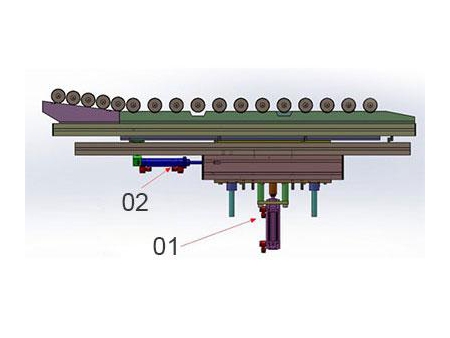

    01: Actuator A
    02: Actuator B

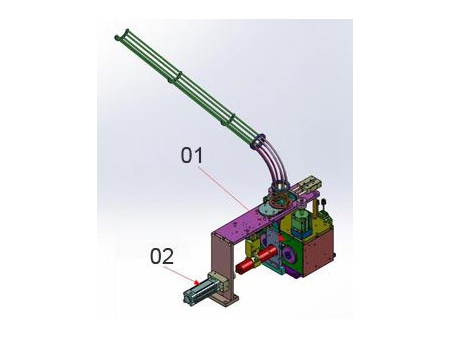

  • Automatic filling and automatic cutting
    01: Actuator A
    02: Actuator B
  • Automatic plunger inserting

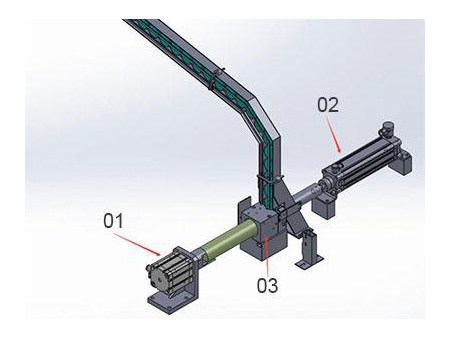

    01: Cylinder actuator A
    02: Cylinder actuator B
    03: Mould

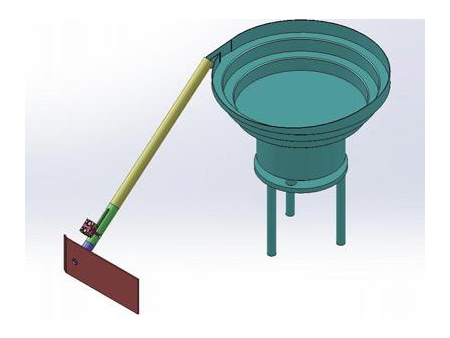

  • Desiccant adding
    Desiccant adding mechanism

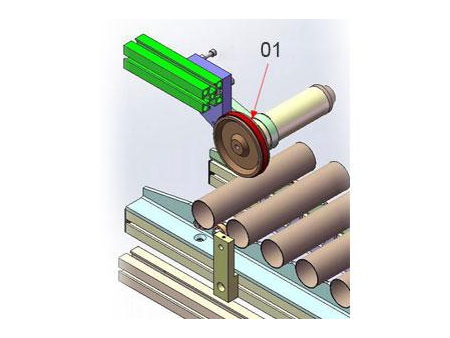

  • Cartridge closing with aluminum cap
    01: Cartridge closing with aluminum cap
    02: Actuator
  • Automatic rotary code-printing
    01: Product rotary mechanism
  • Filling volume adjustment is optional in manual or automatic operation.
  • Failure warning and prompting
