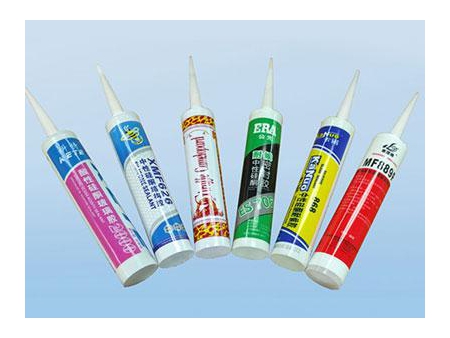

The single head piston filler is mainly used for filling pastes into plastic and paper cartridges, like silicone sealant, potting sealant, photovoltaic sealant, liquid nails, etc.

Description

This single head filler has a filling capacity of about 30 finished cartridges per minute, with each product ranging in measuring volume between 200ml and 320ml. And if you have different requirements for filling volume, we can customize the equipment according to your demands. This automatic filler is a machine integrating automatic empty cartridge feeding, automatic plunger feeding, filling, plunger inserting and printing. This filler operates in single fill mode, applicable to different sorts of sealants.

Technical parameters
Filling speed 25-35 containers/min.
Filling accuracy ±1g/300ml
Filling range 200ml-320ml (customization is offered for larger capacity)
Overall power 5.5KW
Gas pressure 0.7MPa
Gas consumption 120L/min
Working pressure of hydraulic system 7-9Mpa
Hydraulic cooling mode Water cooling, air cooling
Machine size (L x W x H) 2600x1200x2320mm
Net weight 1.5T

Note: We can match the voltage and frequency of the equipment depending on different customer’s location.

Structure

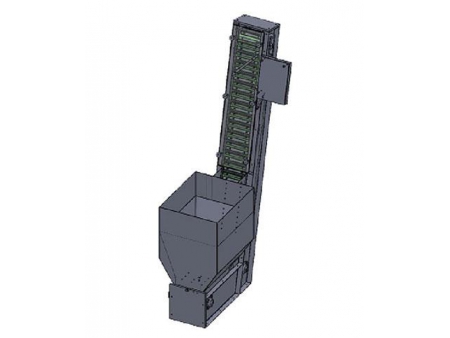

  • Automatic conveying of empty bottle and plunger

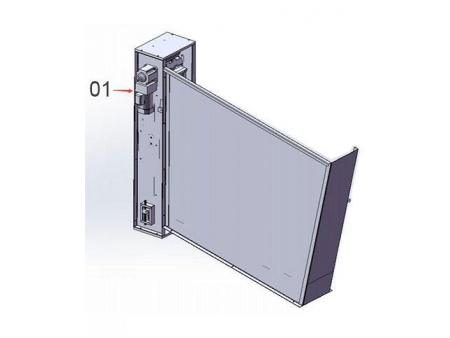

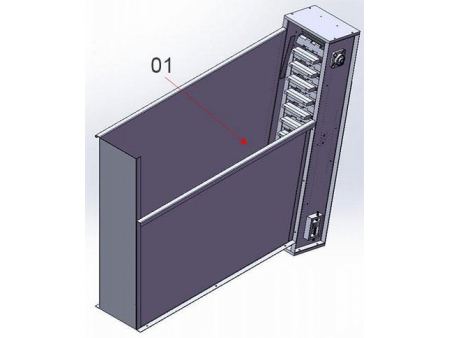

    • 01: Empty cartridges load bin

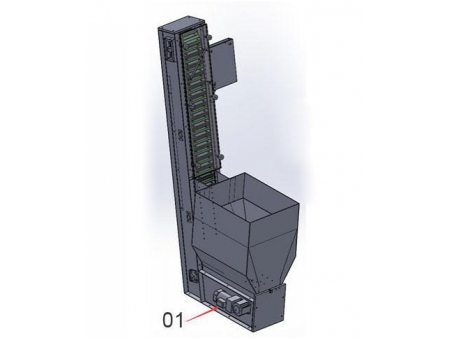

    • 01: Motor
    • 01: Motor

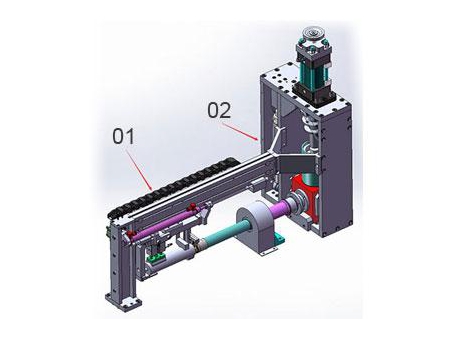

  • Conveying mechanism
    01: Actuator A
    02: Actuator B
  • Automatic filling and automatic cutting
    01: Actuator A
    02: Actuator B

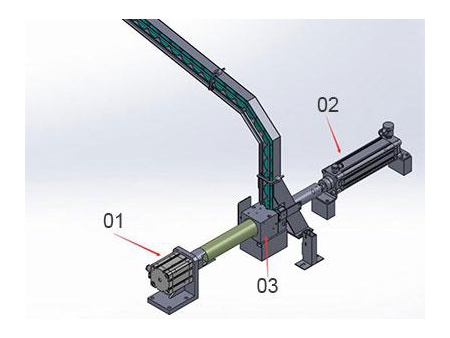

  • Automatic plunger inserting
    01: Cylinder actuator A
    02: Cylinder actuator B
    03: Mould

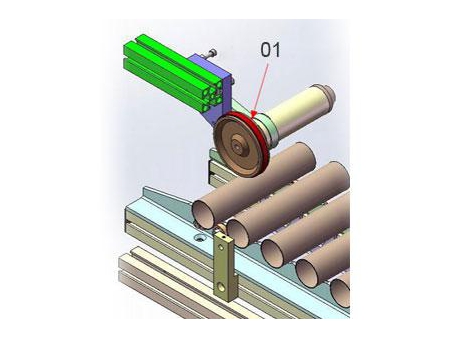

  • Automatic rotary printing
    01: Products rotating mechanism
  • Filling volume adjustment is optional in manual or automatic operation.
  • Failure warning and prompting
