The automatic piston filler is mainly applied for the filling of low viscosity liquids, like industrial potting sealant, polyurethane sealant and much more.

Description

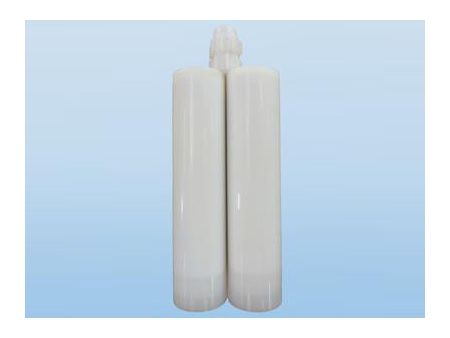

The biggest feature of this automatic filler is independent dual-component filling. It can fill 25 cartridges per minute, which integrates automatic cartridge feeding, automatic plunger feeding, independent dual-component filling, plunger inserting and code-printing.

Technical parameters
Filling speed 18-25 containers/min.
Filling accuracy ±1g/300ml
Filling range 200ml-320ml (larger capacity can be customized)
Overall power 9.5KW
Gas pressure 0.7MPa
Gas consumption 180L/min
Working pressure of hydraulic system 7-9Mpa
Hydraulic cooling mode Water cooling, air cooling
Machine size (L x W x H) 2840x1200x2320mm
Net weight 2.0T

Note: Great can match the voltage and frequency of the equipment depending on different customer’s locations.

Structure

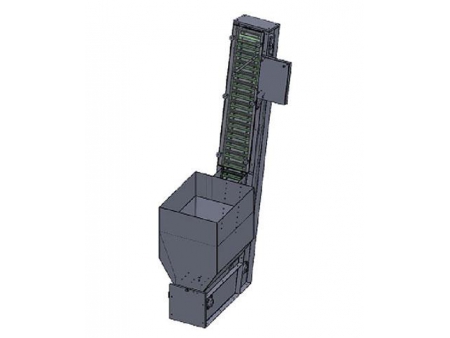

  • Automatic conveying of empty cartridge and plunger

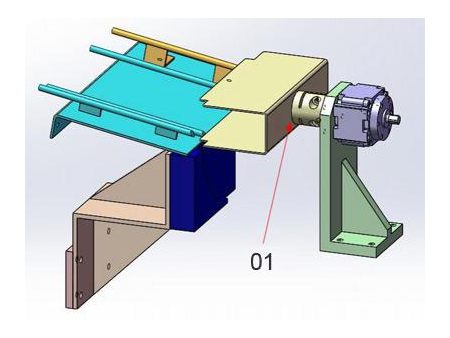

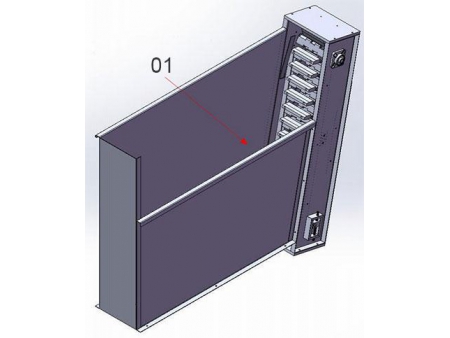

    • 01: Empty cartridges load bin

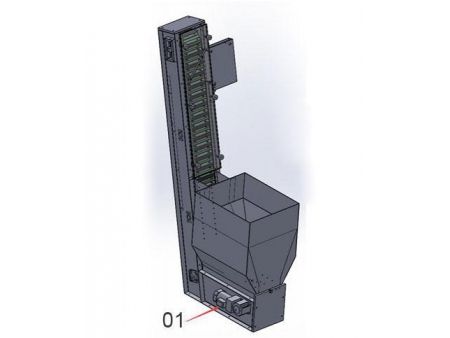

    • 01: Motor

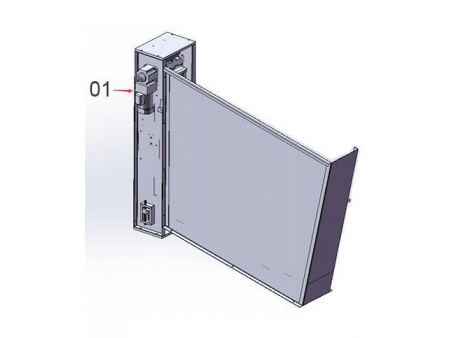

    • 01: Motor
  • Cartridge load bin

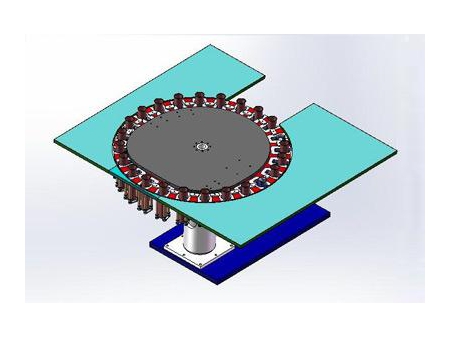

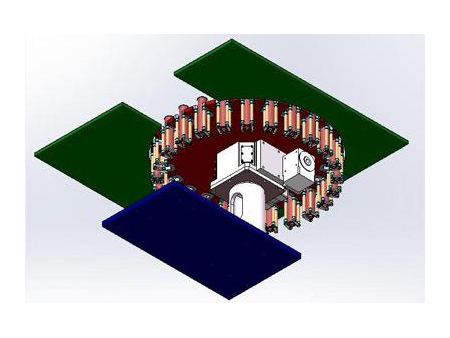

    01: Feeding rotary mechanism
  • Conveying mechanism

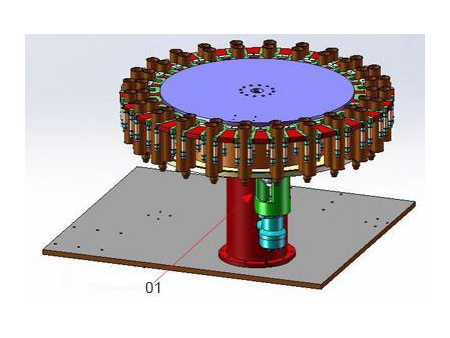

    • 01: Rotary mechanism
  • Two independent filling mechanisms

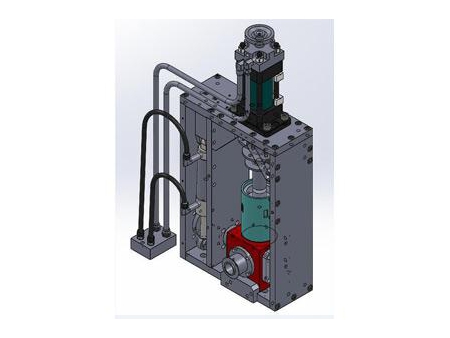

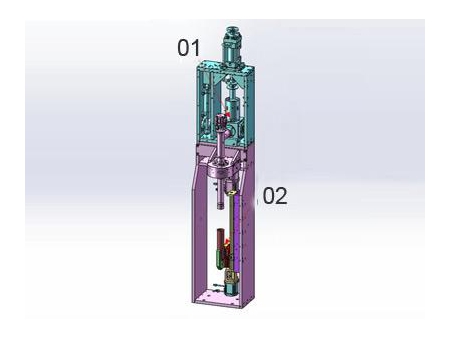

    • 01:Metering mechanism
      02:Filling lift mechanism
  • Automatic plunger inserting
    • 01: Actuator A
    • 02: Actuator B

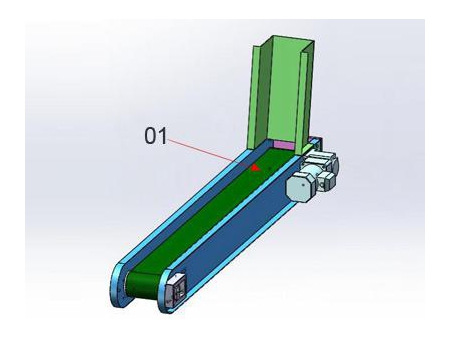

  • Products unload mechanism
    01: Products unload mechanism
    After all the processes have been completed, the products are transferred by conveyor to the equipment packaging area.
  • Filling volume adjustment is optional in manual or automatic operation.
  • Failure warning and prompting
