Centrifugal Pump, Solar Water Pumping

Centrifugal Pump, Solar Water Pumping
Centrifugal Pump, Solar Water Pumping
Centrifugal Pump, Solar Water Pumping
Centrifugal Pump, Solar Water Pumping
Centrifugal Pump, Solar Water Pumping
Request a Quote
  • Max. flow range: 4.8 m³/h ~ 60 m³/h
  • Max. head range: 15m~40m
  • Pump voltage: DC48V, DC72V, DC96V
  • Inlet/outlet:1"/1", 1.5"/1.5", 2"/2", 3"/3", 4"/4"

Features

  • The centrifugal solar pumps are suitable for domestic water needs, farm irrigation, garden irrigation, air conditioner water cooling system, drinking water supply, water pipe pressure boost, etc.
  • The centrifugal solar pumping system is designed with simple construction, high effectiveness and excellent reliability.
  • Voltage: DC centrifugal pump: DC 48V-DC 96V;
    AC/DC centrifugal pump: AC 220V, DC 330V.
  • Power: 220W-750W.
  • Max. flow: 60000L/H.
  • Max. head: 40m.

Product Configuration

  • Pump body: stainless steel.
  • Impeller: brass or stainless steel.
  • Motor casing: die-casting aluminum.
  • Bearing: NSK stainless steel bearing.
  • Motor: permanent magnet synchronous brushless motor.
  • Controller: MPPT function, reverse polarity alarm protection, wide voltage input range.

Technical Data

  • Model: SCPM6.6/40-D48/750P(SS)
  • Max. Flow (m³/h): 6.6
  • Max. Head (m): 40
  • Pump
    Voltage (V): 48
    Power (W): 750
  • Solar Panel
    Open Circuit Voltage (V): 30-96
    Recommended Power (W): 1000-1250
  • Inlet/outlet (inch): 1/1

  • Model: SCPM4.8/25-D48/370
  • Max. Flow (m³/h): 4.8
  • Max. Head (m): 25
  • Pump
    Voltage (V): 48
    Power (W): 370
  • Solar Panel
    Open Circuit Voltage (V): 30-96
    Recommended Power (W): 500-600
  • Inlet/outlet (inch): 1/1

  • Model: SCPM6.6/38-D48/750
  • Max. Flow (m³/h): 6.6
  • Max. Head (m): 38
  • Pump
    Voltage (V): 48
    Power (W): 750
  • Solar Panel
    Open Circuit Voltage (V): 30-96
    Recommended Power (W): 1000-1200
  • Inlet/outlet (inch): 1/1

  • Model: SCPM16/18-D48/750
  • Max. Flow (m³/h): 16
  • Max. Head (m): 18
  • Pump
    Voltage (V): 48
    Power (W): 750
  • Solar Panel
    Open Circuit Voltage (V): 30-96
    Recommended Power (W): 1000-1200
  • Inlet/outlet (inch): 1.5/1.5

  • Model: SCPM27/15-D72/1100
  • Max. Flow (m³/h): 27
  • Max. Head (m): 15
  • Pump
    Voltage (V): 72
    Power (W): 1100
  • Solar Panel
    Open Circuit Voltage (V): 50-150
    Recommended Power (W): 1500-2000
  • Inlet/outlet (inch): 2/2

  • Model: SCPM45/17-D96/1500
  • Max. Flow (m³/h): 45
  • Max. Head (m): 17
  • Pump
    Voltage (V): 96
    Power (W): 1500
  • Solar Panel
    Open Circuit Voltage (V): 60-185
    Recommended Power (W): 2000-2500
  • Inlet/outlet (inch): 3/3

  • Model: SCPM60/18-D300/2200
  • Max. Flow (m³/h): 60
  • Max. Head (m): 18
  • Pump
    Voltage (V): AC220/DC300
    Power (W): 2200
  • Solar Panel
    Open Circuit Voltage (V): 300-450
    Recommended Power (W): 2500-3200
  • Inlet/outlet (inch): 4/4

Applications

Domestic water needs
Air conditioner water cooling system

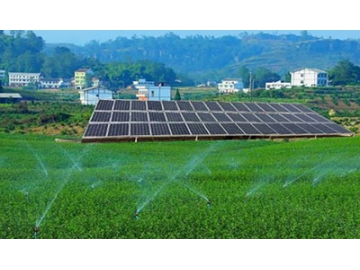

Agricultural irrigation
Drinking water supply
