Request a Quote
  • Max. flow range: 6 m³/h ~ 31 m³/h
  • Max. head range: 9m~19m
  • Pump voltage: DC24V, DC48V, DC72V
  • Inlet/outlet:1.5"/1.5", 2"/2", 2.5"/2.5"

Features

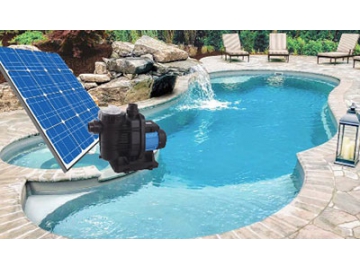

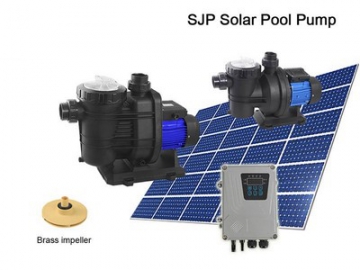

  • Solar Pool Pump SJP series are designed for water filtration and circulation in domestic or commercial pools. This solar powered water pump can also be used for domestic water supply and agricultural irrigation.
  • The solar powered pool pump features simple design, high working efficiency, high effectiveness and high reliability.
  • Voltage: DC 24V, DC 48V, DC 72V.
  • Power: 200W-1200W.
  • Max. flow: 6000L/H-31000L/H.
  • Max. head: 9m-19m.

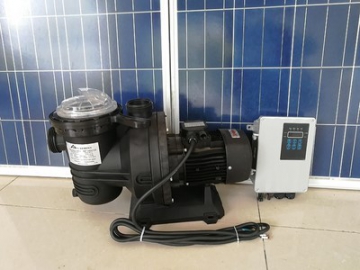

Product Configuration

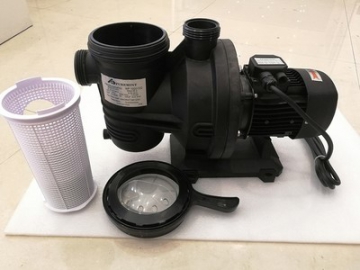

  • Pump body and outlet: plastic.
  • Impeller: plastic.
  • Motor casing: die-casting aluminum.
  • Bearing: NSK stainless steel bearing.
  • Motor: permanent magnet synchronous brushless motor.
  • Controller: MPPT function, reverse polarity alarm protection, wide voltage input range.

Applications

Domestic water needs

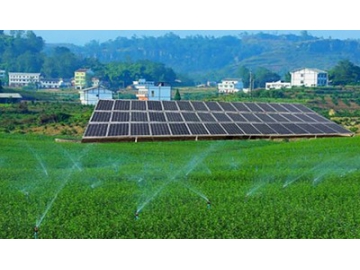

Agricultural irrigation
Pool circulation and filtration

Technical Data

  • Model: SJP6/9-D24/200
  • Max. Flow (m³/h): 6
  • Max. Head (m): 9
  • Pump
    Voltage (V): 24
    Power (W): 200
  • Solar Panel
    Open Circuit Voltage (V): 20-50
  • Recommended Power (W): 280-380
  • Inlet/outlet (inch): 1.5/1.5

  • Model: SJP17/15-D48/500
  • Max. Flow (m³/h): 17
  • Max. Head (m): 15
  • Pump
    Voltage (V): 48
    Power (W): 500
  • Solar Panel
    Open Circuit Voltage (V): 30-96
    Recommended Power (W): 650-800
  • Inlet/outlet (inch): 2/2

  • Model: SJP21/19-D72/900
  • Max. Flow (m³/h): 21
  • Max. Head (m): 19
  • Pump
    Voltage (V): 72
    Power (W): 900
  • Solar Panel
    Open Circuit Voltage (V): 50-150
    Recommended Power (W): 1200-1400
  • Inlet/outlet (inch): 2/2

  • Model: SJP31/19-D72/1200
  • Max. Flow (m³/h): 31
  • Max. Head (m): 19
  • Pump
    Voltage (V): 72
    Power (W): 1200
  • Solar Panel
    Open Circuit Voltage (V): 50-150
    Recommended Power (W): 1560-1800
  • Inlet/outlet (inch): 2.5/2.5
