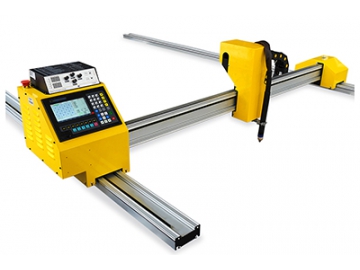

Portable CNC Plasma & Flame Cutting Machine, GC-2030

Portable CNC Plasma & Flame Cutting Machine, GC-2030
Portable CNC Plasma & Flame Cutting Machine, GC-2030
Portable CNC Plasma & Flame Cutting Machine, GC-2030
Portable CNC Plasma & Flame Cutting Machine, GC-2030
Portable CNC Plasma & Flame Cutting Machine, GC-2030
Portable CNC Plasma & Flame Cutting Machine, GC-2030
Portable CNC Plasma & Flame Cutting Machine, GC-2030
Portable CNC Plasma & Flame Cutting Machine, GC-2030
Portable CNC Plasma & Flame Cutting Machine, GC-2030
Portable CNC Plasma & Flame Cutting Machine, GC-2030
Portable CNC Plasma & Flame Cutting Machine, GC-2030
Portable CNC Plasma & Flame Cutting Machine, GC-2030
Portable CNC Plasma & Flame Cutting Machine, GC-2030
Portable CNC Plasma & Flame Cutting Machine, GC-2030
Request a Quote
  • Effective cutting area: 2000 x 3000mm (60 x 120 inch)
  • Gas types for flame cutting: oxygen acetylene/propane
  • Maximum flame cutting thickness: 200mm (8 inch)
  • Maximum plasma thickness: Dependent on the capacity of power supply
  • Precision of plasma cutting: ±0.2mm/m
  • Voltage & frequency: 110V±10%, 60Hz, 0.21HP (160W)
  • Weight: 220 kg
  • 48 pre-set patterns
Request a quote

Portable CNC plasma and flame cutting machine can cut efficiently and effectively just like conventional CNC cutting machines do. The cutting machine’s edge over conventional manual devices lies in its equipment of a double-sides drive that provides stable operation and high cutting precision. The cutter has two cutting modes—plasma and flame, which enable it to cut a variety of materials, such as carbon steel plate with different thickness, stainless steel and non-ferrous metal. The portable CNC cutting machine is also able to conduct numerical profile cutting since a capacitor sensor will be activated in plasma cutting mode, and in flame mode, an automatic arc voltage height controller will be triggered, facilitating the machine to control the height and quality of the cutting. The machine’s compact structure and affordable price make it especially suitable for small- and medium-size machining companies.

Features
  • Programmable to cut straight lines or curved lines of any shape;
  • Dynamic/static illustration of cutting, which is easy and intuitive to learn;
  • Able to receive CAD files that have been converted from personal computer through a USB port and can cut materials into different shapes. The port also allows direct programming and remote operating from the computer;
  • Exceptional rail and moving mechanism ensure high working precision of ±0.2mm/m;
  • 19-language menu, Chinese / English / Russian / Spanish / Portuguese / Dutch / French / Japanese / Korean, etc.;
  • Easy to transport since its weight is only 200 kg;
  • Cutting area can be 2000×3000mm;
  • Stable operation and capable to avoid high-frequency interference;
  • Robust structure, as evidenced by its aluminum-alloy-made cantilever and machine structure;
  • Automatic ignition device and torch height control;
  • Easy to move through the placement on the raw metal plate;
Model GC-2030
Effective cutting area (mm) 2000 x 3000mm
Cutting speed (mm/ min) 50-4000
Power 380V±10%VAC, 50/60HZ three phase 220V±10%VAC, 50/60HZ single phase
Flame cutting (oxy-fuel cutting)
Thickness (mm) 2-150mm (oxygen acetylene/propane)
Torch height control Electric flame height adjustment (±60mm)
Cutting torch One-piece cutting torch
Plasma cutting
Plasma cutting thickness 0-15mm (depending on plasma power)
Torch height control
Arc voltage torch height control
Gas types for plasma cutting N2, O2, compressed air
Motor power 63A-200A
Cutting torch 8m plasma cutting torch
CNC FL2100B
Motor
Leadshine stepper motor
Working precision ±0.2mm / m
Guide rail size (L×W×T) 3500 * 273 * 60mm
Software Starcam, Fastcam
Cutting mode changeover Simple changeover between plasma and oxy-fuel cutting. Plasma cutting can be performed by increasing plasma power supply and equip arc voltage torch height control and plasma cutting torch.

Plasma cutting Plasma cutting torch is designed to cut metal plates up to 40mm thickness;

Flame cutting Flame cutting torch is specially designed to cut plates with thickness of 100mm and 150mm, featuring wide applications with lower cost;

Materials
  • stainless steel
  • low carbon steel
  • carbon steel
  • alloy steel
  • spring steel
  • iron
  • galvanized iron
  • galvanized steel
  • galvanized plate
  • aluminum
  • copper
  • brass
  • bronze
  • gold
  • silver
  • titanium
Industries
  • billboards
  • identification plates
  • metal channel letters
  • LED letters
  • kitchenware
  • metal parts & components
  • metal containers
  • metal enclosures
  • metal shelves
  • metal crafts & artworks
  • faceplates
  • hardware
  • auto parts
  • glasses frames
  • electronic components
Examples with Plasma Cutting
Examples with Flame Cutting
  • Control system comes from Shanghai Fangling, which adopts a 7 inch touch screen.

    Features

    • Pattern display
    • 19-language menu
    • 48 preset patterns
    • Metal plate adjustment
    • Automatic memorization of the last cutting point when power is off
    • Ejection of cutting materials in a row
    • Cutting from current position
    • Offline cutting
    • Online upgrade
  • Linear guide rail in transverse motion is made of aluminum alloy and features deformation resistance. The rail in longitudinal motion works precisely and stably.

  • Motors come from Leadshine, namely a Leadshine stepper motor and a THC and DC motor. They can work coordinately and their performances surpass most rivals.

  • The flame cutting torch is fixed on its carriage, while the plasma one is combined with its power supply. The cutting system features easy changeover between two cutting modes.

  • Machine’s operating software is FastCAM Pro that can read and convert various CAD file formats such as DXF, DWG and IGES.
