Air Inverter Plasma Cutter / Portable Plasma Cutting Machine
Request a Quote

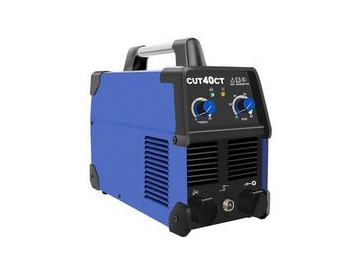

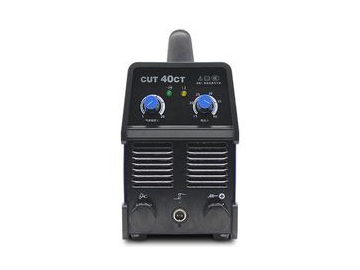

CUT 40CT
Features
- Reliable cutting performance, contact arc starting, high success rate of arc ignition;
- Excellent arc stability, creating a narrow kerf and smooth cut edge, with lower cutting cost;
- Fast cutting speed, especially when cutting carbon steel plate of 6mm in thickness;
- Adjustable post-flow time, plasma cutting torch is cooled to prolong its service life;
- Compact size and lightweight, easy to carry;
Specifications
| Model | |
| Input voltage (V) | 1P/AC220V±15% |
| Frequency (Hz) | 50/60 |
| Rate input current (A) | 30 |
| No-load voltage (V) | 275 |
| Current range (A) | 15-40 |
| Rate output voltage (V) | 96 |
| Duty cycle (%) | 30 |
| Efficiency (%) | 80 |
| Power factor | 0.78 |
| Insulation class | Class F |
| Protection grade | IP21 |
| Arc starting | Contact arc ignition |
| Pressure of air compressor (kgf/cm2) | 4-5 |
| Limited cutting thickness (mm) | 16 |
| Recommended cutting thickness (mm) | 1-10 |
| Weight (kg) | 7.3 |
| Dimensions (L×W×H) (mm) | 402×160×300 |
Package Included

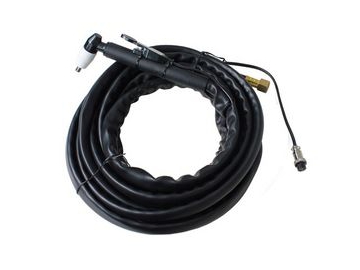

- PT-31 plasma cutting torch, 1pc

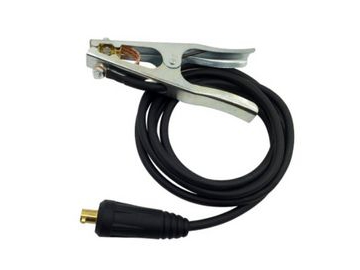

- Ground clamp & cable assembly, 1 set

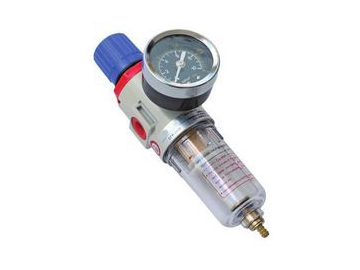

- Air filter regulator, 1pc

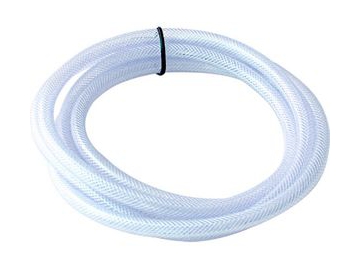

- Gas hose, 1pc
Applications
Optional Welding Accessories
PT31 plasma nozzle
PT31 plasma nozzle
PT31 plasma nozzle
PT31 plasma nozzle
Swirl ring
Nozzle shield cup
PT31 plasma electrode
PT31 plasma electrode

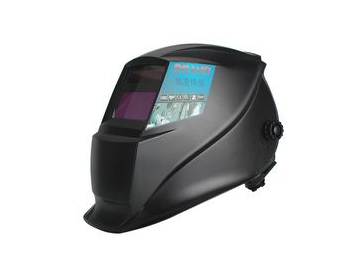

Auto-darkening welding helmet
