Air Inverter Plasma Cutter / Handheld Plasma Cutting Machine
Request a Quote

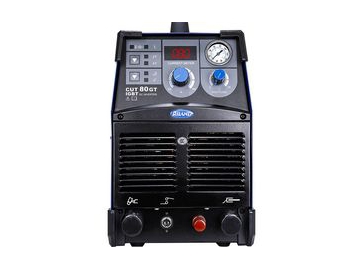

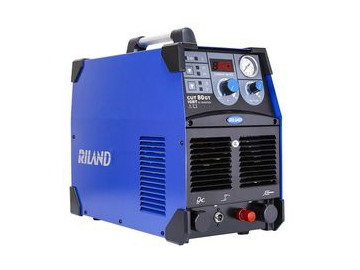

CUT 80GT
Features
- IGBT inverter technology, high frequency arc starting, ensuring easy arc initiation;
- Configured with CNC interface, suitable for both CNC plasma cutting and manual plasma cutting operations by connecting the right torch;

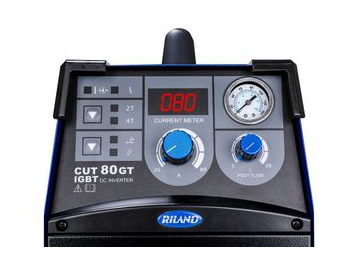

- Front air pressure gauge, 2T/4T function, air pressure switch, adjustable post-flow time;

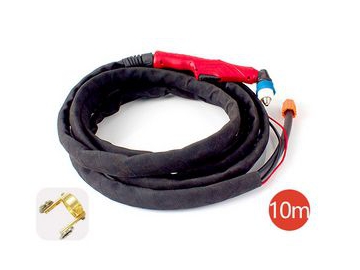

- Work well with 10m cutting torch, satisfying wide operating range;
- Able to work for long period, ideally suited to industrial cutting applications;
- CUT 80GT plasma cutter can rapidly cut steel plates of 15mm in thickness, with cutting speed of 500mm/min;
- CUT 100GT plasma cutter can rapidly cut steel plates of 20mm in thickness, with cutting speed of 500mm/min;
Specifications
| Model | | |
| Input voltage (V) | 3P/ AC380V±15% | |
| Frequency (Hz) | 50/60 | |
| Rated input current (A) | 17.6 | |
| Rated power (kVA) | 11.6 | |
| No-load voltage (V) | 300 | |
| Duty cycle (40℃) | 40% | |
| Output current adjusting range (A) | 20-80 | |
| Rated output voltage (V) | 112 | |
| Post-flow time (s) | 5-20 | |
| Efficiency (%) | 85 | |
| Power factor | 0.9 | |
| Electromagnetic Compatibility (EMC) | A | |
| Insulation class | Class H | |
| Protection grade | IP21 | |
| Arc starting | High frequency arc ignition | |
| Pressure of air compressor (kgf/cm2) | 4-5.5 | |
| Limited cutting thickness (mm) | 40 | |
| Recommended cutting thickness (mm) | 1-25 | |
| Net weight (kg) | 21.5 | |
| Dimensions (L×W×H) (mm) | 508×244×423 | |
Package Included
- P80 plasma cutting torch, 1pc

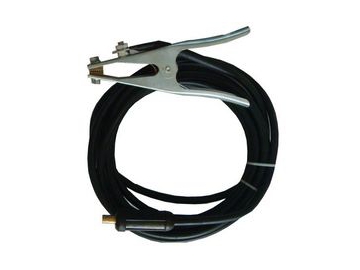

- Ground clamp & cable assembly, 1 set

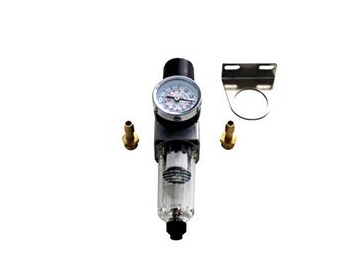

- Air filter regulator, 1pc

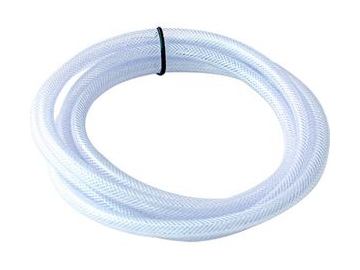

- Gas hose, 1pc
- CNC connector, 2pcs

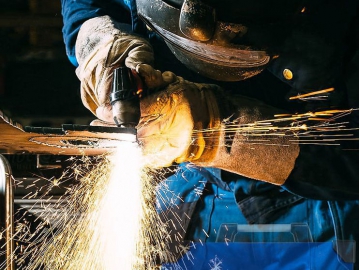

Applications
Optional Welding Accessories
P80 shield cup
P80 plasma nozzle
P80 plasma torch wheel spacer
Welding gloves

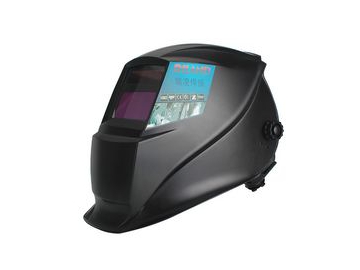

Auto-darkening welding helmet
