Inverter Plasma Cutter / Air Plasma Cutting Machine
Request a Quote
CUT 60CT
Features
- Reliable cutting performance, contact arc starting, high success rate of arc ignition;
- Excellent arc stability, creating a narrow kerf and smooth cut edge, with lower cutting cost;
- Fast cutting speed, suitable for cutting carbon steel plate of 10mm at high speed;
- Designed with corner protectors, reducing potential scratches;

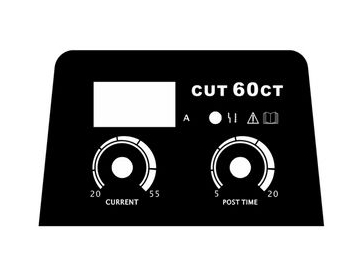

- Digital display;
- Adjustable post-flow time, plasma cutting torch is cooled for longer service life;
- Compact size and lightweight, easy to carry;
Specifications
| Model | |
| Input voltage (V) | AC220V±15% |
| Frequency (Hz) | 50/60 |
| Rate input current (A) | 41.5 |
| No-load voltage (V) | 300 |
| Current Range (A) | 20-55 |
| Rate output voltage (V) | 102 |
| Duty cycle | 30% |
| Efficiency | 80% |
| Power factor | 0.79 |
| Insulation class | Class F |
| Protection grade | IP21 |
| Arc starting | Contact arc ignition |
| Pressure of air compressor (kgf/cm2) | 4-5.5 |
| Limited cutting thickness (mm) | 20 |
| Recommended cutting thickness (mm) | 1-15 |
| Weight (kg) | 8 |
| Dimensions L×W×H(mm) | 402×160×300 |
Package Included

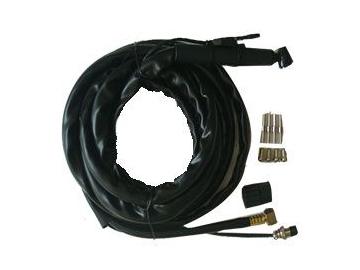

- PT-31 plasma cutting torch, 1pc

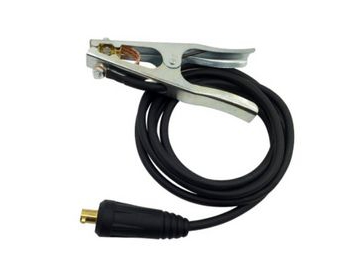

- Ground clamp & cable assembly, 1 set

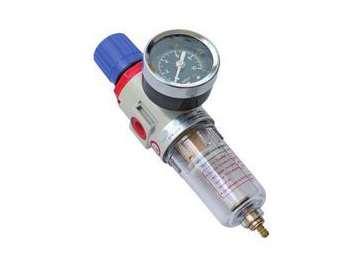

- Air filter regulator, 1pc

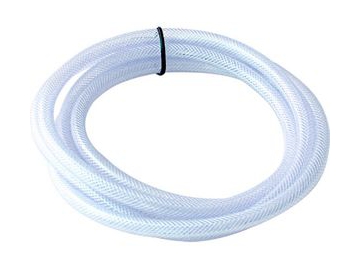

- Gas hose, 1pc

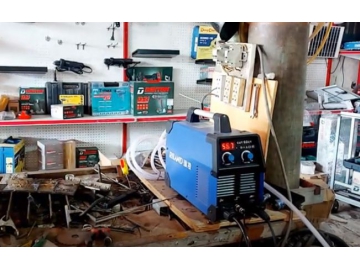

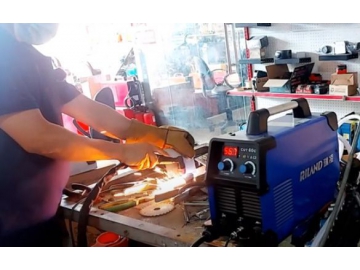

Applications
Optional Welding Accessories

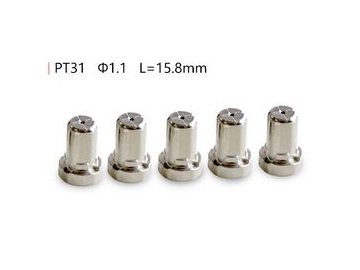

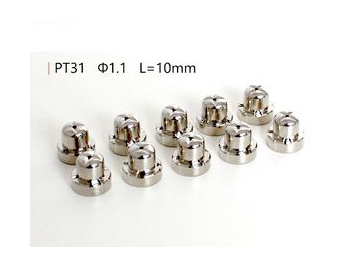

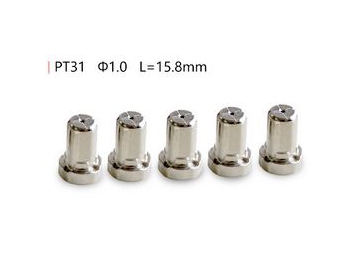

PT31 plasma nozzle
PT31 plasma nozzle

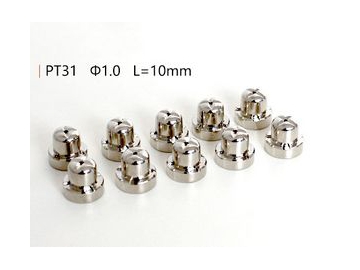

PT31 plasma nozzle
PT31 plasma nozzle

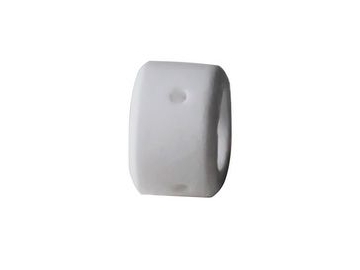

Swirl ring

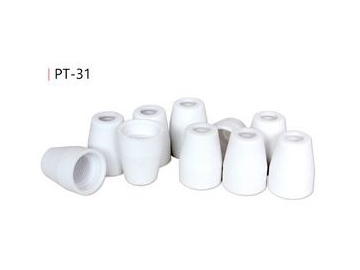

Nozzle shield cup

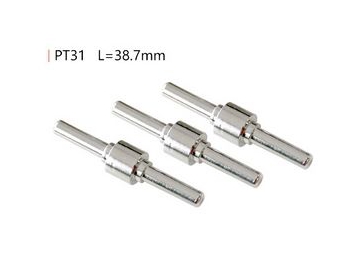

PT31 plasma electrode

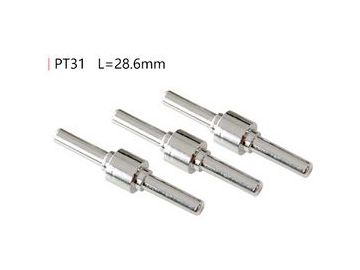

PT31 plasma electrode

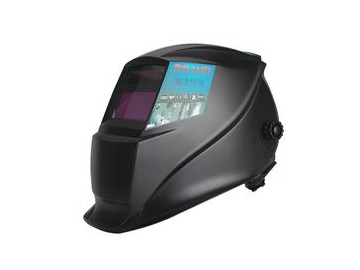

Auto-darkening welding helmet
