WN03VA300 Motorized Lab Jack
Request a Quote
WN03VA300 motorized lab jack is suitable for providing axial movement by electric control in automatic displacement control in scientific research, full-automatic measuring and testing equipment, industrial automation and other fields. Motorized lab jack is used horizontally and could be combined with other motorized stages to form integrated multi-axis stages.
Parameter table of WN03VA300 motorized lab jack

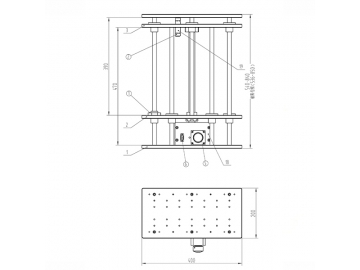

Structural parameter| Travel | Table size | Guide type | Stepper motor (1.8°) | Center load capacity | Weight |
| 300 mm | 400mm×200mm | Cross ball guide | SST57D2121 | 50kg | 23kg |
| Minimum adjustment | Maximum speed | Repeatability | Backlash | Step-out | |
| 5μ (Non-MS driver) | 0.25μ (20 MS driver) | 2mm/sec | 10μ | 4μ | 3μ |
- Light weight and anti-corrosion with aluminum alloy material, surface blackened by anodic oxidation.
- Equipped with standard stepper motor and RS232 interface, the WNSC series motion controller which was independently developed by BJWN can realize automatic control.
- Equipped with precision lead screw drive, the motorized lab jack could lift freely with minimal backlash.
- Connected the stepper motor and ground lead screw by high quality flexible coupling, good for eliminating eccentricity and greatly reducing eccentricity disturbance, lower noise.
- The lab jack could be customized, such as adding limit function, setting the initial zero, changing the servo motor, and adding the rotary encoder.
