G100 Alloy Steel Omega Link

G100 Alloy Steel Omega Link
G100 Alloy Steel Omega Link
G100 Alloy Steel Omega Link
Request a Quote

Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with G100 chains;
● The performance is increased by 25% compared with G80 products;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: powder plastified;
● Color code: Blue RAL5015.

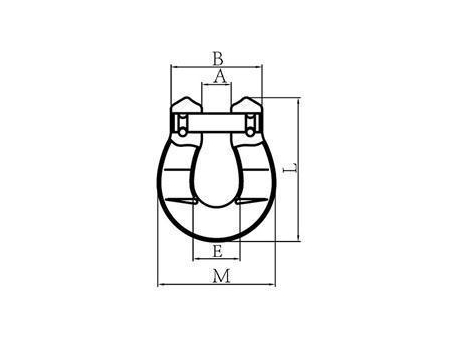

Parameters (Unit: mm)
Item code Weight (kg) Working load limit (t) Breaking load (t) A±0.5 B±2 E±1.5 M±2 L±2
10-SLR1027-06 0.12 1.4 5.6 8.5 32.5 20 44 55
10-SLR1027-08 0.27 2.5 10 10.5 42 24 60 73.5
10-SLR1027-10 0.44 4 16 12.5 48.5 31 70 90
10-SLR1027-13 0.89 6.7 26.8 16 60 38.5 90 109
10-SLR1027-16 1.69 10 40 19 75.5 51 112 141.5

Ultimate load is 4 times the Working Load Limit.

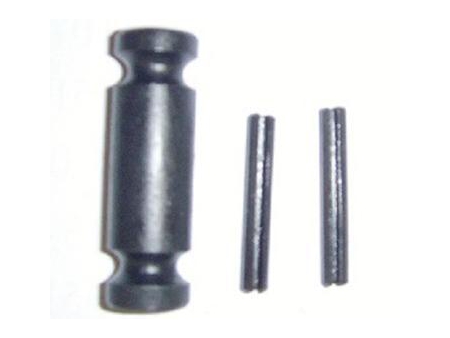

SP-SLR1027-SPARE PART FOR SLR1027
(1 black pin+2 black elastic cylinder pin)

Parameters (Unit: mm)
Item Code SIZE
SP-SLR1027-6 6-10
SP-SLR1027-8 8-10
SP-SLR1027-10 10-10
SP-SLR1027-13 13-10
SP-SLR1027-16 16-10
