Alloy Steel Connecting Link

Alloy Steel Connecting Link
Alloy Steel Connecting Link
Alloy Steel Connecting Link
Request a Quote

The alloy steel connecting link has the following features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with G100 chains;
● The performance is increased by 25% compared with G80 products;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastic spraying;
● Color code: Blue RAL5015.

Parameters (Unit: mm)

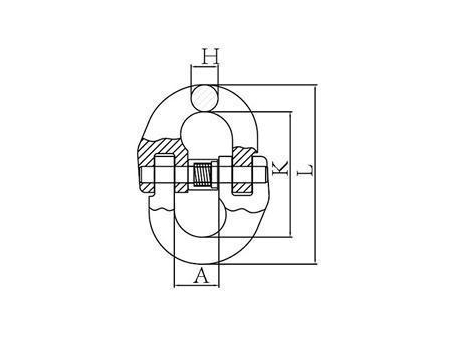

Item code Weight (kg) Working load limit (t) Breaking load (t) H±1 A±1.5 K±2 L±2.5
10-SLR1001-06 0.08 1.4 5.6 7.6 14 44.5 60
10-SLR1001-08 0.18 2.5 10 10 18.5 61.5 84.5
10-SLR1001-10 0.34 4 16 12.6 23 72 97.2
10-SLR1001-13 0.68 6.7 26.8 16.8 27.5 89 127
10-SLR1001-16 1.22 10 40 21 33.5 103 145
10-SLR1001-20 2.13 16 64 24.5 42 116 175
10-SLR1001-22 3 19 76 27 48 135 193
10-SLR1001-26 5.15 26.5 106 32 61 164 228
10-SLR1001-32 9.5 39.3 157.2 40 80 194 274

Ultimate load is 4 times the Working Load Limit.

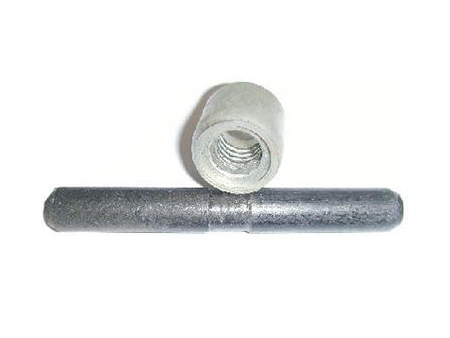

SLR1001 SPARE PART (STEEL BUSHING+PIN)

Parameters (Unit: mm)
Item Code SIZE Item Code SIZE
SP-SLR1001-6 6-10 SP-SLR1001-20 20-10
SP-SLR1001-8 8-10 SP-SLR1001-22 22-10
SP-SLR1001-10 10-10 SP-SLR1001-26 26-10
SP-SLR1001-13 13-10 SP-SLR1001-32 32-10
SP-SLR1001-16 16-10

1 SET = Cold Galvanizing Steel Bushing+black Pin
