Alloy Steel Connecting Link Manufacturer

Alloy Steel Connecting Link

Request a Quote

About Us: http://shenli-rigging.com/2-6-alloy-steel-connecting-link.html

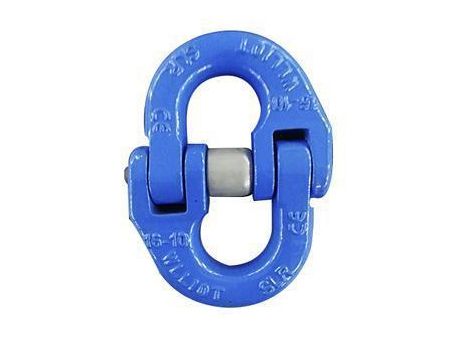

SLR075-ALLOY G80 U.S. TYPE CONNECTING LINK

Features
● It is a G80 product which can only used for lashing and pulling but not lifting!
● It is forged by alloy steel. And the strict heat treatment ensures the intensity and toughness.
● It can be matched with G80 chains.

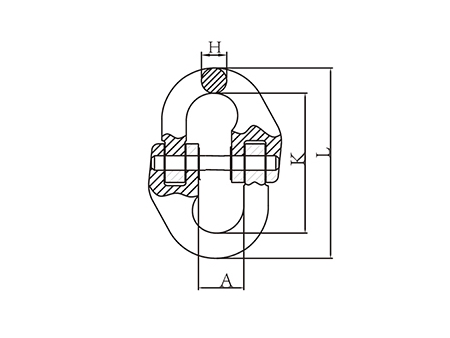

Parameters (Unit: mm)

Item Code	WEIGHT/1bs	WORKING LOAD LIMIT/1bs	BREAKING LOAD/1bs	A±1.5	L±2	K±2	H±1
8-SLR075-1/4	0.24	3250	13000	19.8	69	55	7.8
8-SLR075-5/16	0.32	4500	18000	20.5	79.5	62.5	8.5
8-SLR075-3/8	0.58	6600	16400	27	91.5	68.5	11.5
8-SLR075-1/2	1.2	11250	45000	35	111	81	15
8-SLR075-5/8	2.42	16500	66000	42	137.5	95.5	21
8-SLR075-3/4	3.89	23000	92000	43	171	126	22.5
8-SLR075-7/8	6.08	28750	115000	48	190.5	141.5	24.5

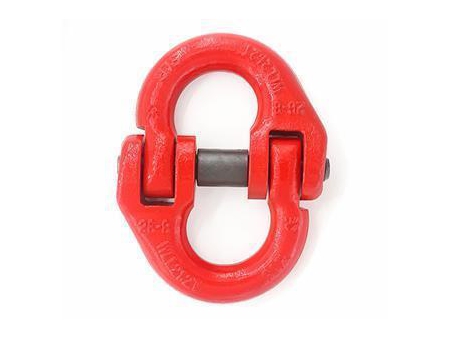

LUG CONNECTING LINK
It can only be used for normal connecting but not lifting.

OVAL CONNECTING LINK
It can only be used for normal connecting but not lifting.
