Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with sling and G80 chains which can meet the standard EN818-2;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Powder plastified.Surface treatment:
● Color code: red RAL3020/yellow RAL1003.
● Ultimate load is 4 times the Working Load Limit.
● We can provide stainless steel products.

Parameters (Unit: mm)

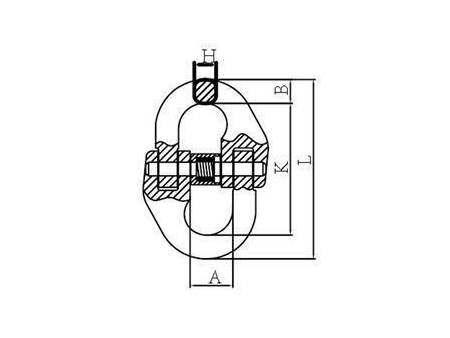

Item Code Weight (kg) Woring Load Limit (t) Breaking Load (t) A±1.5 B±1 L±2.5 K±2 H±1
8-SLR074-06 0.08 1.12 4.48 15 7.5 58 42 7
8-SLR074-7 0.145 1.5 6 19 8.5 71.8 54.8 8.5
8-SLR074-7/8 0.146 2 8 18 9.5 79.5 60.5 8.5
8-SLR074-8 0.16 2 8 19.5 9.5 79.5 60.5 8.5
8-SLR074-10 0.30 3.15 12.6 25 12 90.5 68 11.5
8-SLR074-13 0.65 5.3 21.2 29 15 117 87 15
8-SLR074-16 1.15 8 32 34.5 19.8 148 108.4 19.8
8-SLR074-18 1.84 10 40 38 21 154 112 21
8-SLR074-20 2.1 12.5 50 41 24 169.5 121.5 24
8-SLR074-22 2.87 15 60 48 26 193.5 141.5 26
8-SLR074-26 4.5 21.2 84.8 57.5 31 220 158 30
8-SLR074-32 8.21 31.5 126 67 38 281 205 37

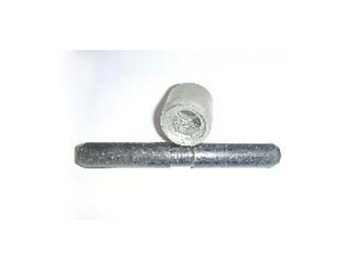

SP-SLR074 - TYPE A -SLEEVE AND LOAD PIN (SINGLE SLEEVE)
Parameters (Unit: mm)
Item Code Size Item Code Size
SP-SLR074-6 6-8 SP-SLR074-18 18-8
SP-SLR074-7/8 7/8-8 SP-SLR074-20 20-8
SP-SLR074-10 10-8 SP-SLR074-22 22-8
SP-SLR074-13 13-8 SP-SLR074-26 26-8
SP-SLR074-16 16-8 SP-SLR074-32 32-8

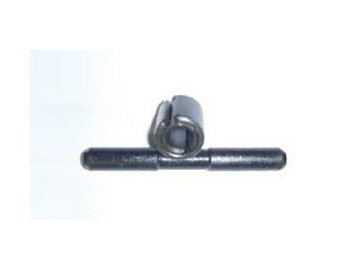

SP-SLR074 -TYPE B -SLEEVE AND LOAD PIN (DOUBLE SLEEVE)
Parameters (Unit: mm)
Item Code Size Item Code Size
SP-SLR074-6 6-8 SP-SLR074-18 18-8
SP-SLR074-7/8 7/8-8 SP-SLR074-20 20-8
SP-SLR074-10 10-8 SP-SLR074-22 22-8
SP-SLR074-13 13-8 SP-SLR074-26 26-8
SP-SLR074-16 16-8 SP-SLR074-32 32-8
