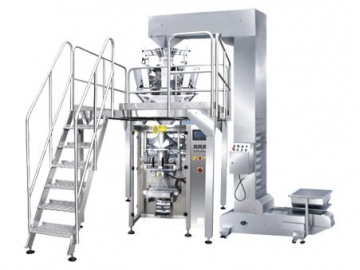

Type MK-420D Vertical Form Fill Sealing for Powdered Products
Request a Quote
The Type MK-420D vertical form fill sealing for powdered products is equipped with an auger filler and screw feeder, ideal for the packaging of powdered products featuring -100 mesh like milk powder, albumen powder, coffee powder, flour, etc.
Packaging materials OPP/CPP composite film, OPP/CE composite film, MST/P composite film, PET/PE composite film, aluminum foil.
Packaging bag styles- Flow pack wrapping
- Hang hole bag
- Gusset bag
- Type: MK-420D
- Packing speed: 10-60bags/min
- Bag size: L:50-300mm W:80-200mm
- Measuring range: 10-2000ml
- Max film width: 420mm
- Film thickness: 0.04-0.10mm
- Air consumption: 0.4m³、min 0.6MPa
- Power source: 2.5KW/220V 50-60Hz
- Weight: 650kg
- Overall size: 2250x1670x2700mm
- Mitsubishi PLC control system and touch screen operating system allow for clear display of operational statistics and indication.
- High precision servo film feeding system guarantees smooth film conveying and accurate positioning.
- Intelligent digital temperature control system offers stable temperature difference control. A tooth sealing mould is equipped to ensure firm sealing.
- With automatic fault alarm display function, this vertical form fill seal packaging line will shut down immediately and alarm automatically once malfunction occurs.
- Packaging line feeder
- Finished package conveyor
- Weight checker
- Metal detector
- Ribbon printer
