Vertical Form Fill Seal Machine, MK-MBX Ultrasonic Sealing Packaging Solution

Vertical Form Fill Seal Machine, MK-MBX Ultrasonic Sealing Packaging Solution
Vertical Form Fill Seal Machine, MK-MBX Ultrasonic Sealing Packaging Solution
Vertical Form Fill Seal Machine, MK-MBX Ultrasonic Sealing Packaging Solution
Vertical Form Fill Seal Machine, MK-MBX Ultrasonic Sealing Packaging Solution
Request a Quote
The MK-MBX vertical form fill seal machine is equipped with a linear weigher to accommodate ration packaging of uniform fine granules with a diameter lass than 20mm, including seeds, white sugar, dried fruits, and more. The linear weigher features several hoppers, making this packaging solution ideal for customers needing to manage different weights and granule types.
Bag materials

Non-woven fabric

Packaging styles

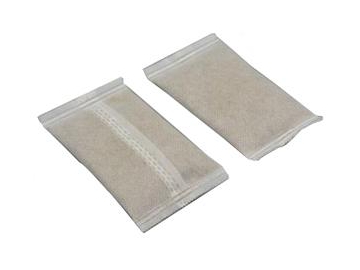

  • Back seam bag

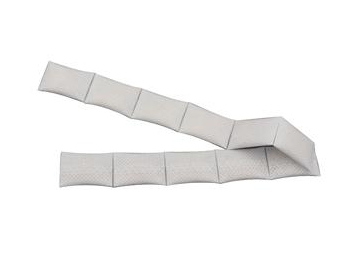

  • Strip sachets
Parameters
  • Type: MK-MBX
  • Packing speed: 15-50bags/min
  • Bag size: L:40-350mm W:20-150mm
  • Measuring range: 3-500ml (depending on packaging products)
  • Film width: 50-320mm
  • Sealing type: back seam
  • Power source: 3000W/ 220V、380V/ 50-60Hz
  • Weight: 350kg
  • Air consumption: 0.5 m3/min
  • Overall size: L1300* W1200* H2600mm
Structural drawing
Additional Options
  • Packaging line feeder
  • Finished package conveyor
  • Ribbon printer
  • Thermal Transfer Printer
