BH-914-400 Arched Roof Sheet Forming Machine Manufacturer

BH-914-400 Arched Roof Sheet Forming Machine

Request a Quote

About Us: http://cn-formingmachine.com/1-400-mic240.html

Yingkou Bohai Colored Steel Sheet Forming equipment Co., Ltd. is an experienced Arch Sheet Roll Forming Machine manufacturer in Yingkou city, Liaoning province, China. We have more than 20 years of experience and have the capacity to produce other roll forming machines including BH-span Arch Sheet Project, SM-40 Spiral Steel Silo Forming Machine s, roof sheet forming machines, etc. Our products are exported to Mexico, UAE, Romania, Ukraine, Angola and many more countries. Our more than 20 years of experience in this industry have given us the necessary knowledge required for the production of durable and productive BH-span Arch Sheet forming machines at low prices. Please contact us for more information!

Main Technical Specifications
Size	8900mm×2230mm×2300mm
Feeding width	914mm
Proper span	≤40m
Total weight	About 10000kg

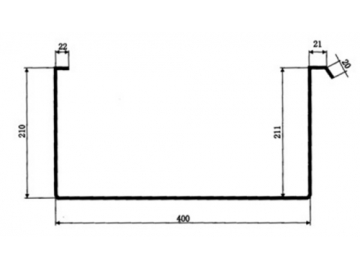

Effective width	400mm
Sheet operating factor	43.8%
Total motor power	17.9kw
Bending power	3.0kw 1.1kw×2
Sewing power	2.2kw
Cutting power	3.0kw
Forming power	7.5kw
Controlling system	PLC and manual
Cutting mode	Mechanical cutting
Depth of the groove	210mm
Material of roller shaft	45# steel, galvanized
Material of rollers	45# steel, quenched with hard chrome

Characteristics

The rollers and shafts are both solid, the rollers are made by 45# steel plated with hard chromium.
The thickness of our arch shaping leaf is 10mm, the process of manufacture for our arch shaping leafs are controlled by computer.
The length of the finished sheet is measured by the electronic measurement instrument or mechanical measurement instrument.
Our machine can be divided in to two cutting ways, one is hydraulic, and the other is mechanical. Controlling system include manual and automatic. It can be also designed according to your requirement.
Our helping hand wheel and the counter are used in adjustment of the bending of arch sheet, which makes the operation simpler.
Our hoisting tool is light and handy; the weight of hoisting tool of our company is 2KG. It is convenient to install and uninstall the hoisting tool. Its hoisting speed is quick.
