Bohai is a BH-span Arch Sheet machine manufacturer located in Yingkou city of Liaoning province, China. We have more than 20 years of experience in manufacturing roll forming machines and have the capability to produce good BH-span Arch Sheet machines at low costs. At Bohai, we thrive on the quality of all our products. Our quality control personnel and design team work together to improve the quality of our BH-span Arch Sheet machines. As a result, our BH-span Arch Sheet machines are increasingly demanded in Brazil, Romania, UAE, Ukraine, Mexico and more countries. We also provide OEM services, upon request. Please contact us for more information!

Main Technical Specifications
Size 8900mm×2230mm×2300mm
Feeding width 914mm
Proper span ≤14m
Total weight About 10000kg

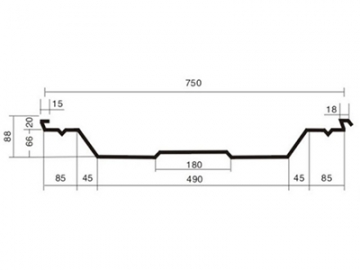

Effective width 750mm
Sheet operating factor 82%
Total power 17.9kw
Cutting power 3.0kw
Forming power 7.5kw
Bending power 3.0kw 1.1kw×2
Sewing power 2.2kw
Controlling system PLC and manual
Cutting mode Mechanical cutting
Corollary equipment Equipped with generator
Depth of the groove 180mm
Material of roller shaft 45# steel, galvanized
Material of rollers 45 # steel, quenched with hard chrome
Characteristics
  • Our machine can be divided in to two cutting ways, one is hydraulic, and the other is mechanical. Controlling system include manual and automatic. It can be also designed according to your requirement.
  • The thickness of our arch shaping leaf is 10mm, the process of manufacture for our arch shaping leafs are controlled by computer.
  • Our helping hand wheel and the counter are used in adjustment of the bending of arch sheet, which makes the operation simpler.
  • The rollers and shafts are both solid, the rollers are made by 45# steel plated with hard chromium.
  • The length of the finished sheet is measured by the electronic measurement instrument or mechanical measurement instrument.
  • Our hoisting tool is light and handy; the weight of hoisting tool of our company is 2KG. It is convenient to install and uninstall the hoisting tool. Its hoisting speed is quick.
