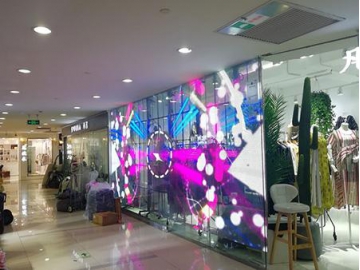

Haian transparent LED display is suitable for building high-impact indoor displays. Unique display effect, which looks like the video suspended in the air, is more attractive to customers. The high transparency and high resolution features make it ideal for use in retail stores, making your store look more fashionable and thus enhancing your brand image.

We offer 4 standard models of transparent LED displays for customers to choose from, and customers can buy them directly. Considering that different customers have different demands, the standard model does not meet the needs of all customers. For best results, we can provide the best LED display solution according to the actual situation.

Features:
  • The traditional LED display will block the customer's sight, so customers can not directly see the products in your store. Transparent LED display has a transparency of 72% to 90% and does not affect lighting and sight.
  • LED panel is ultra-lightweight, and minimum weight can reach 6kg/sqm. It can be directly attached to the original glass curtain wall keel structure installation. You don’t need to install additional steel structure, and can save space and installation costs at the same time.
  • According to the modular cabinet design, you can change the number of display modules to change the size of the transparent screen. This makes transparent LED display the most suitable option for some temporary locations.
  • Contrast: 4000:1, excellent color reproduction degree.
Parameters:
Model P3.9x7.8 P7.8x7.8 P7.8x15.6 P10.4x10.4
Pixel Pitch horizontal: 3.9mm;vertical: 7.8mm horizontal: 7.8mm; vertical: 7.8mm horizontal: 7.8mm; vertical: 15.6mm horizontal: 10.4mm; vertical: 10.4mm
Pixel Configuration SMD 1R1G1B SMD 1R1G1B SMD 1R1G1B SMD 1R1G1B
LED Type 1921 1921 2525 3535
Pixel Per SQM 32,768 dots 16,384 dots 8,192 dots 9,216 dots
Cabinet Size 1000x500mm / 1000x1000mm 1000x500mm / 1000x1000mm 1000x500mm / 1000x1000mm 1000x500mm / 1000x1000mm
Cabinet Material Aluminum +Acrylic Aluminum +Acrylic Aluminum +Acrylic Aluminum +Acrylic
Cabinet Weight 7kg / 14kg 7kg / 14kg 7kg / 14kg 7kg / 14kg
Brightness 2500 cd/m2 2500 cd/m2 2500 cd/m2 2500 cd/m2
Viewing Angle 120 / 120 ° 120 / 120 ° 120 / 120 ° 120 / 120 °
Minimum Viewing Distance 4m 8m 10m 11m
Gray Scale 65536 65536 65536 65536
Refresh Rate 1920 Hz 1920 Hz 1920 Hz 1920 Hz
Input Voltage (AC) 100v - 240v 100v - 240v 100v - 240v 100v - 240v
Input power frequency 50 or 60 Hz 50 or 60 Hz 50 or 60 Hz 50 or 60 Hz
LED Blind Spot Rate 1/10,000 1/10,000 1/10,000 1/10,000
Lifetime 100,000 h 100,000 h 100,000 h 100,000 h
Operating Temperature -25 ~ 40 ℃ -25 ~ 40 ℃ -25 ~ 40 ℃ -25 ~ 40 ℃
Operating Humidity 10% - 90% 10% - 90% 10% - 90% 10% - 90%
Protection Rate IP31 IP31 IP31 IP31
Warranty 3 years 3 years 3 years 3 years
