Tree Radius End Carbide Bur

Tree Radius End Carbide Bur
Tree Radius End Carbide Bur
Tree Radius End Carbide Bur
Request a Quote
About Us: http://metalworking-tool.com/2-7-emt07-carbide-4-flute-corner-radius.html
  • Single cut and double cut
  • 3mm and 6mm shank available
  • YG8 Tungsten carbide
Dimension (mm)
Cutting Edge Diameter Flute length Shank diameter Overall length
3 13 3 50
6 18 6 58
8 18 6 58
10 20 6 60
12 25 6 65
14 25 6 65
16 25 6 65
Technical Data
  • Hardness of shank: 40-45 HRC
  • Hardness of tungsten steel: HRA 90-91
  • Concentricity of cylindrical rotary file: 0.1 mm
Related products
Carbide Bur Cylinder Shape with Radius End
Carbide Bur Cylinder Shape with Radius End
Pointed Tree Shape Carbide Bur
Pointed Tree Shape Carbide Bur

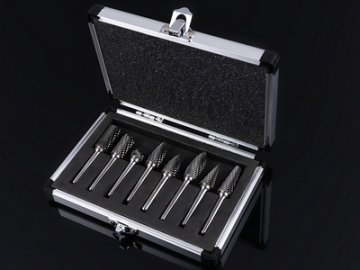

8 Pieces 6mm Shank Carbide Bur Set
8 Pieces 6mm Shank Carbide Bur Set

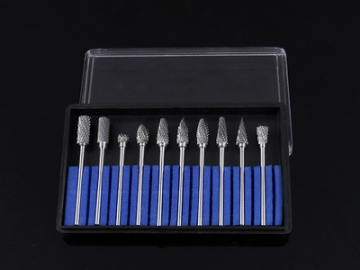

10 Pieces 3mm Shank Carbide Bur Set
