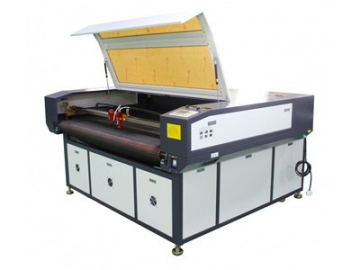

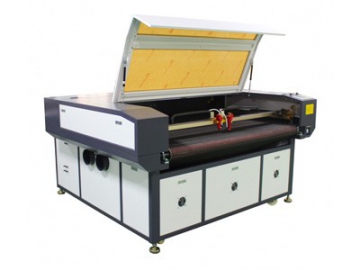

Auto Feeding CO2 Laser Cutter

Request a Quote

About Us: http://lasercut-group.com/1-5-9-co2-double-head-laser-cutter.html

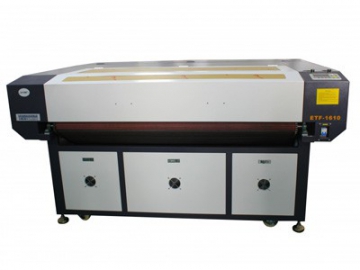

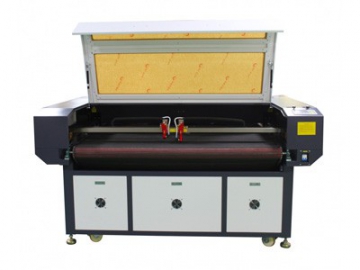

Auto feeding CO2 laser cutter is equipped with automatic feeding device and track-type work platform. Optional automatic feeding device with deviation correcting can solve the feed deviation problems which ensure precisely and effectively material feeding. It can realize 24-hour continuously automatic feeding and cutting without manual operation which greatly improves the productivity. This laser cutter has mirror function which supports cutting symmetrical patterns. It can cut various materials including clothing, furniture, cardboard, etc. It is also suitable for feeding materials and cutting the shape of various carpets. This machine is highly praised and appreciated by mass clients.

Features

Auto feeding CO2 laser cutter can automatically slit the graphic to realize unlimited length cutting.

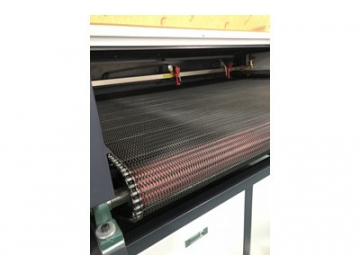

It is equipped with track-type work platform. Its repeat position accuracy is 0.1mm.
Two exhaust systems ensure the excellent cutting effect and keep the working environment clean.
Optional automatic feeding device with deviation correcting ensures the feeding accuracy is within ±0.2mm.

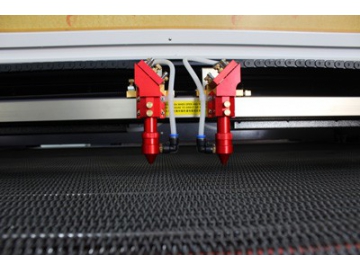

Two movable laser heads make the cutting more time-saving and material saving.

Technical Parameters

Model	ETF-1610
Laser type	Glass tube or RF CO2 laser
Working area	1600*1000mm
Laser power	80-180W
Cutting speed	0-36000MM/Min
Engraving speed	0-48000MM/Min
Focal length	38.1mm,50.8mm,63.5mm,75mm,100mm
Position accuracy	±0.015MM
Minimum line width	0.15-0.3MM
Cooling type	Water cooling system

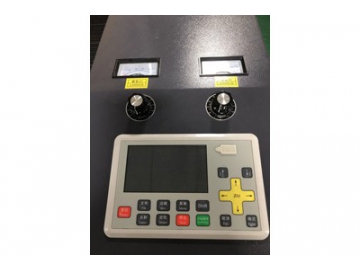

Control mode	DSP
Acceptable graphic format	PLT, DST, AI, DXF, BMP, JPG, CAD, CDR, DWG
Operating voltage	AC 110/220V±10%, 50/60Hz
Operating temperature range	0-40℃
Machine power	< 2500W
Dimensions	2300x2000x1400mm
Weight	650kg
Laser safety class	Class IV

Other models:

Model	Working area	Dimensions	Weight
ETF-1810	1800x1000mm	2500x2000x1400mm	750kg

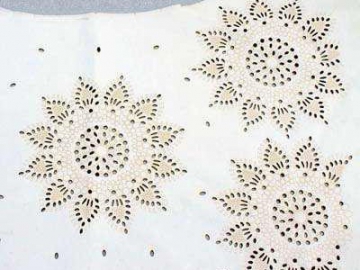

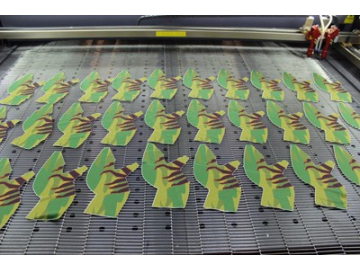

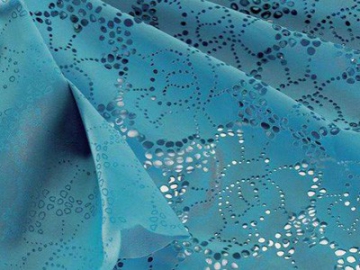

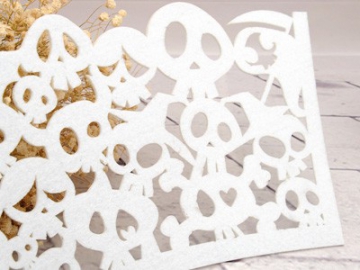

Samples
