Interleaved Satin Finish Drums Manufacturer

Interleaved Satin Finish Drums

Request a Quote

About Us: http://indus-abrasives.com/1-6-2-interleaved-satin-finish-wheels.html

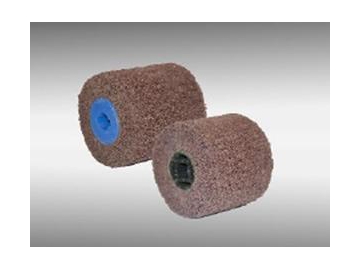

Joysun Combi Interleaved satin finish drums are manufactured with an abrasive cloth flaps exterior made up of non-woven flaps with high quality refined alumina oxide grain. They feature a built-in plastic core with a keyhole and quick change arbor for rapid changeover.

The interleaved linear satin finish wheels are used to produce satin finishes onto a wide variety of different surfaces for various jobs. They minimize thermal load, which significantly increases speed and effectiveness for a fast job done right. They are recommended for jobs on large flat surfaces of stainless steel, high tensile alloys, carbon steel, aluminum alloy, non-ferrous metals, glass plastic, marble and stone.

JAC-K726KS Interleaved Satin Finish Drums

Availability

Product Code	JAC-K726KS	JAC-K727RS	JAC-K728VS
Abrasive Grains	Aluminum Oxide	Aluminum Oxide	Aluminum Oxide
Backing Cloth Type	X-weigth Ply cotton/Non-woven	X-weigth Ply cotton/Non-woven	X-weigth Ply cotton/Non-woven
Flaps Fitted Version	Interleaved	Interleaved	Interleaved
Wheel Center Hole Type	Keyway Hole / Threaded Hole	Keyway Hole / Threaded Hole	Keyway Hole / Threaded Hole

SIZE	SIZE	OPT	MAX	GRIT	STD	PART #	PART #	PART #	PART #	PART #	PART #
( D x W x H )	( D x W x H )	RPM	RPM	GRIT	PACK	PART #	PART #	PART #	PART #	PART #	PART #
4" x 2" x 3/4"	100 x 50 x 19 mm	2,000	5,700	CRS + 60	10	72006		72007		72008
				MED + 60		72019		72010		72011
				MED + 80		72022		72023		72024
				MED+100		72035		72036		72037
				MED+120		72048		72049		72040
				FIN + 120		72051		72052		72053
				FIN + 150		72064		72065		72066
				VFN + 180		72077		72078		72079
				VFN + 240		72080		72081		72082
				SFN + 320		72093		72094		72095
4" x 4" x 3/4"	100 x 100 x 19 mm	2,000	5,700	CRS + 60	10	72106		72107		72108
				MED + 60		72119		72110		72111
				MED + 80		72122		72123		72124
				MED+100		72135		72136		72137
				MED+120		72148		72149		72140
				FIN + 120		72151		72152		72153
				FIN + 150		72164		72165		72166
				VFN + 180		72177		72178		72179
				VFN + 240		72180		72181		72182
				SFN + 320		72193		72194		72195
4-1/4" x 2" x 5/8"-11	105 x 50 x 5/8"-11	2,000	5,700	CRS + 60	10		72206		72207		72208
				MED + 60			72219		72210		72211
				MED + 80			72222		72223		72224
				MED+100			72235		72236		72237
				MED+120			72248		72249		72240
				FIN + 120			72251		72252		72253
				FIN + 150			72264		72265		72266
				VFN + 180			72277		72278		72279
				VFN + 240			72280		72281		72282
				SFN + 320			72293		72294		72295
4-1/4" x 4" x 5/8"-11	104 x 100 x 5/8"-11	2,000	5,700	CRS + 60	10		72306		72307		72308
				MED + 60			72319		72410		72411
				MED + 80			72422		72423		72424
				MED+100			72435		72436		72437
				MED+120			72448		72449		72440
				FIN + 120			72451		72452		72453
				FIN + 150			72464		72465		72466
				VFN + 180			72477		72478		72479
				VFN + 240			72480		72481		72482
				SFN + 320			72493		72494		72495
4-1/2" x 2" x 5/8"-11	115 x 50 x 5/8"-11	2,000	5,700	CRS + 60	10		72506		72507		72508
				MED + 60			72519		72510		72511
				MED + 80			72522		72523		72524
				MED+100			72535		72536		72537
				MED+120			72548		72549		72540
				FIN + 120			72551		72552		72553
				FIN + 150			72564		72565		72566
				VFN + 180			72577		72578		72579
				VFN + 240			72580		72581		72582
				SFN + 320			72593		72594		72595
4-1/2" x 4" x 5/8"-11	115 x 100 x 5/8"-11	2,000	5,700	CRS + 60	10		72606		72607		72608
				MED + 60			72619		72610		72611
				MED + 80			72622		72623		72624
				MED+100			72635		72636		72637
				MED+120			72648		72649		72640
				FIN + 120			72651		72652		72653
				FIN + 150			72664		72665		72666
				VFN + 180			72677		72678		72679
				VFN + 240			72680		72681		72682
				SFN + 320			72693		72694		72695
4-1/4" x 2" x M14-2	105 x 50 x M14-2	2,000	5,700	CRS + 60	10		72706		72707		72708
				MED + 60			72719		72710		72711
				MED + 80			72722		72723		72724
				MED+100			72735		72736		72737
				MED+120			72748		72749		72840
				FIN + 120			72851		72852		72853
				FIN + 150			72864		72865		72866
				VFN + 180			72877		72878		72879
				VFN + 240			72880		72881		72882
				SFN + 320			72893		72894		72895
4-1/4" x 4" x M14-2	105 x 100 x M14-2	2,000	5,700	CRS + 60	10		72906		72907		72908
				MED + 60			72919		72910		72911
				MED + 80			72922		72923		72924
				MED+100			72935		72936		72937
				MED+120			72948		72949		72940
				FIN + 120			72951		72952		72953
				FIN + 150			72964		72965		72966
				VFN + 180			72977		72978		72979
				VFN + 240			72980		72981		72982
				SFN + 320			72993		72994		72995
4-1/2" x 2" x M14-2	115 x 50 x M14-2	2,000	5,700	CRS + 60	10		73006		73007		73008
				MED + 60			73019		73010		73011
				MED + 80			73022		73023		73024
				MED+100			73035		73036		73037
				MED+120			73048		73049		73040
				FIN + 120			73051		73052		73053
				FIN + 150			73064		73065		73066
				VFN + 180			73077		73078		73079
				VFN + 240			73080		73081		73082
				SFN + 320			73093		73094		73095
4-1/2" x 4" x M14-2	115 x 100 x M14-2	2,000	5,700	CRS + 60	10		73106		73107		73108
				MED + 60			73119		73110		73111
				MED + 80			73122		73123		73124
				MED+100			73135		73136		73137
				MED+120			73148		73149		73140
				FIN + 120			73151		73152		73153
				FIN + 150			73164		73165		73166
				VFN + 180			73177		73178		73179
				VFN + 240			73280		73281		73282
				SFN + 320			73293		73294		73295
