Application

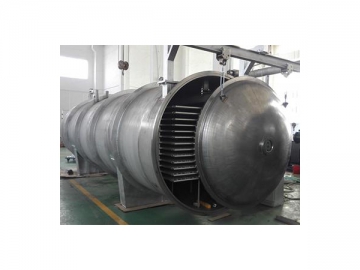

The BLK500kg industrial lyophilization freeze dryer capacity is 500kg, with an effective freeze-drying area is 50m2. It is applicable to the freeze drying of produce, flowers, medicines, bio-products, chemicals and liquid food.

We can customize the capacity and configuration of the BLK500kg industrial lyophilization freeze dryer.

Freeze dried flowers and vegetables
Parameters
Model BLK500kg
Shape and Size Circular 2400*7500mm
Installed Power 90KW- actual usage generally ranges between 60 to 80% of the full power, i.e, 54 – 70kW.
Tray's Area 50.5m2
Shelf 36
Cold Trap Temperature -40℃~-60℃
Vacuum Degree ≥15Pa
Heating way Steam or Electric heating
Capacity 500KG

* Not only do we offer the above models, but we can customize the freeze dryers to have a 0.5m2-200m2 effective freeze-drying area based on customer requirements.

Features
  • Different from traditional drying equipment that requires an additional quick freeze machine or cold storage, this freeze dryer completes both freezing and drying.
  • It saves anywhere between 20 and 30% of energy when compared to other similar products available on the market today.
  • High automation degree: a single operator can operate multiple devices, saving labor costs.
  • Various fault alarms ensure operation is more stable and safe.
  • The waste heat recovery system developed in house is used, saving operation costs.
Details

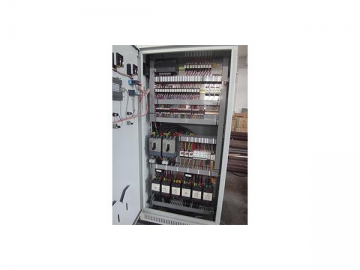

  • SIEMENS, Schneider electrical components and PLC automatic control are used. All are controlled by a touch screen or computer, and are easy to operate.
  • All devices can be controlled manually and automatically on screen.
  • Display, store and viewing of a variety of temperatures, vacuum degree and corresponding curves, all simultaneously.

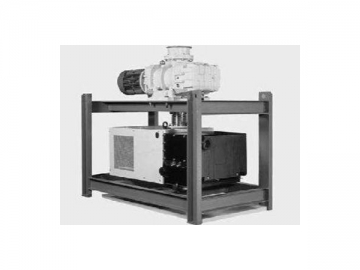

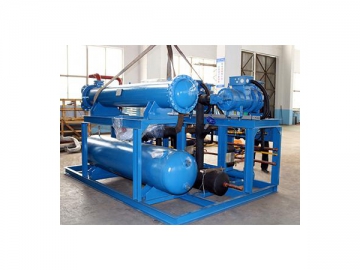

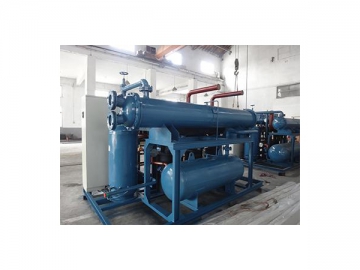

Compressor: compressor pump brands are primarily TUTHILL KINNEY (USA), LEYBOLD, and ULVAC (Japan), each of which has an excellent accuracy and vacuum effect.

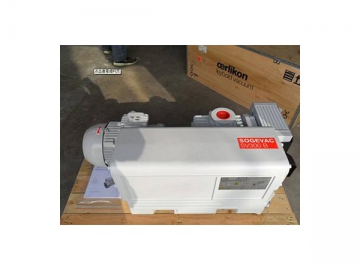

Vacuum pump: vacuum pump brands are primarily BOCK (Germany), FRASCOLD (Italy), and KOBELCO (Japan), each of which has an excellent freeze performance and reliability.
