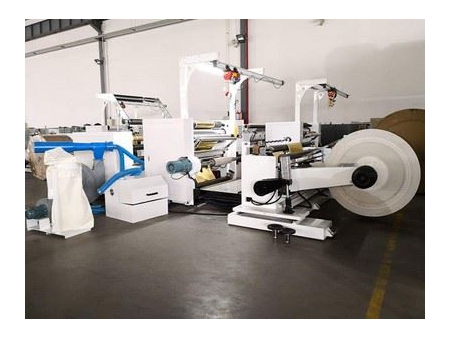

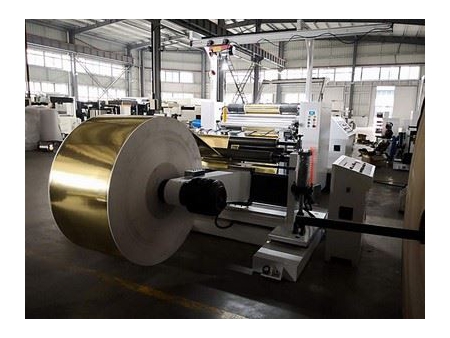

Peeling Rewinding Machine, DBL-1200
Request a Quote
The peeling rewinding machine DBL-1200 is extensively used for peeling, cutting, and rewinding of holographic transfer paper for golden or silver paperboard. The peeler & rewinder adopts PLC for central computer control, HMI, vector controlled variable frequency speed controller, automatic tension control device, and centre shaft rewinder. This peeling rewinding machine is an ideal choice for peeling, slitting, and rewinding.
Features
- The peeling rewinding machine adopts hydraulic system for material loading and unloading.
- In addition, this product is also designed with other functions such as automatic deviation rectification, automatic counting, automatic acceleration and deceleration, etc.
- The cutting rewinding machine has nice appearance, compact structure, high automation, and convenient operation.
Specification
| Web width | 500-1200mm |
| Max. unwinding diameter | 1600mm |
| Max. rewinding diameter | 1600mm |
| Max. peeled film rewinding diameter | 600mm |
| Film weight | 500-1200mm |
| Paper weight | 50-300g/m2 |
| Peel and rewind speed | ≤200m/min |
| Unwinding and rewinding lock shaft | Air expansion shaft |
| Voltage | AC 380V±10% |
| Total power | 35kW |
| Dimension | 5500×4000×2600mm |
