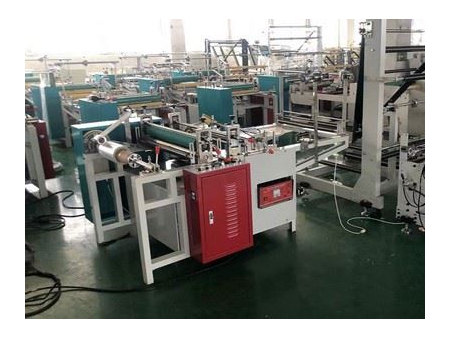

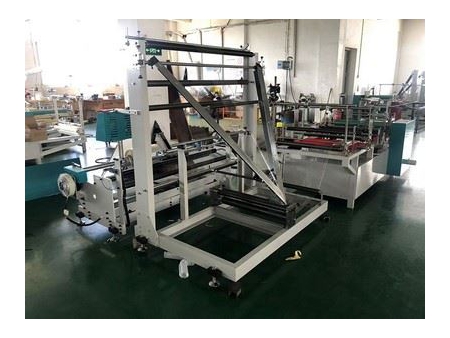

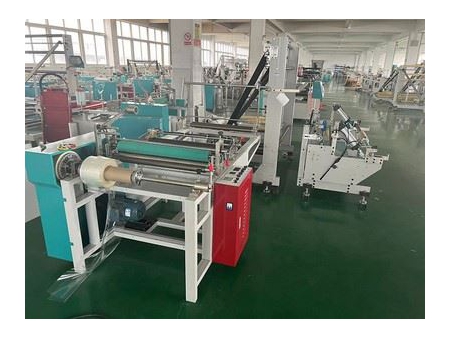

Film Folding Rewinding Machine, SZS

Film Folding Rewinding Machine, SZS
Film Folding Rewinding Machine, SZS
Film Folding Rewinding Machine, SZS
Film Folding Rewinding Machine, SZS
Film Folding Rewinding Machine, SZS
Request a Quote

This Film folder rewinder is suitable for OPP, PP, PE, CPP and other printing or non-printing plastic film folding and rewinding.

Features
  • The unwinding and rewinding motors operate synchronously, ensure the output stable and smoothly.
  • Unwind adopts magnetic powder brake control.
  • Rewind adopts magnetic powder clutch control.
  • Rewinder adopts two photocells for web-guiding.
  • With the functions of Bottom gusset and double adhesive tape applying.
  • The main machine speed adopts inverter regulator.
Optional
  • Pearlized Film Inserting & Ultrasonic Knurling Device
  • Meter Counter
  • Air Shaft
  • Waste Film Trimming Device
Specification
Model
SZS-600
SZS-700
SZS-800
SZS-1000
Max.Unwind Width 1200mm 1400mm 1600mm 2000mm
Max.Rewind width 600mm 700mm 800mm 1000mm
Max.Web Diameter 500mm 500mm 500mm 500mm
Rewind Speed 80m/min 80m/min 80m/min 80m/min
Heater Power 200W 200W 200W 200W
Ultrasonic Power AC1000VA AC1000VA AC1000VA AC1000VA
Power Supply AC220V AC220V AC220V AC220V
Total Power 2.5KW 2.7 KW 3KW 3KW
Overall Dimension(Film Folder) 1490×1520×1370mm 1590×1720×1630mm 1700×1920×1780mm 1890×2200×2100mm
Overall Dimension(Single Folder Rewinder) 1880×820×1200mm 1880×920×1200mm 1880×1020×1200mm 1880×1220×1200mm
Overall Dimension(Double Folder Rewinder) 2320×820×1200mm 2320×920×1200mm 2320×1020×1200mm 2320×1220×1200mm
