CU/MT/XLPE/LSZH 0.6/1kV Single core cable as BS6387
Request a Quote
Single core XLPE insulated LSZH sheathed fire resistant cable

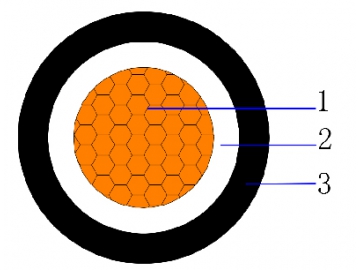

Construction：
Application:
Single core fire resistant cables are ideal for areas where the integrity of the electrical circuit is critical in maintaining power supply. These lines can be found in a wide range of applications including emergency lightings, control and power circuits, power stations, fire alarm systems, underground tunnels, communications systems, sewage treatment plants, lifts, escalators, and high-rise buildings.
Temperature characteristics:
- Conductor operating temperature: -15℃~90℃
- Min. installation temperature: 0℃
Color:
- Insulation: Natural or according to customer requirements
- Sheath: Black or according to customer requirements
Standard:
- Cable design: IEC 60502-1
- Conductor: IEC 60228
- Fire resistant: BS6387 CWZ
Electrical characteristics:
- Rated voltage: 0.6/1 (1.2) kV
- High voltage test: 3.5kV / 5min
Cross section:
- 1 core: 1.5~630mm2
