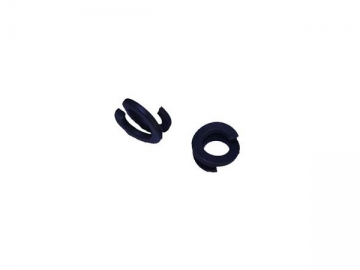

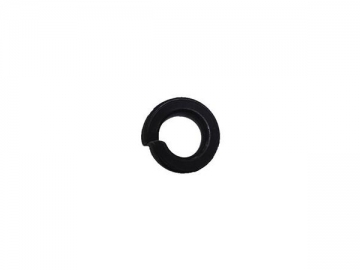

SUYU railway washer is available in single or double types and various sizes. Below are technical specifications of our main railway washers.

Type Dimension Weight (Kg/Mpcs)
Spring washer Fe6(UIC864-3) ¢ 25 90
Spring washer AREA67 7/8 90.55
Spring washer AREA67 1 152.33
Spring washer AREA67 1-1/8 187.65
Plain pattern washer 7/8 70.46
Plain pattern washer 1 78.03
Plain pattern washer 1-1/8 85.32
Flat washer ULS6 47/23/4 41
Flat washer ULS6 50/25/4 42

Adhering to our quality first policy, SUYU pays great attention to quality control management. We have been granted ISO9001-2008 certificates and have received the production license of China's Railway Ministry on railway products. We have a full set of inspection instruments to ensure all our railway washer and other rail fastening are of high quality and up to customers' requirements.

As a leading manufacturer of rail fastening based in China, SUYU also produces many other railway fasteners, such as track bolt, sleeper screw, track spike, tie plate, rail clip, elastic rail clip, SKL tension clamp, rail shoulder, and so on.
