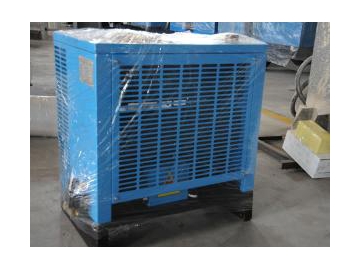

The refrigerated air dryer comes in two types including normal temperature refrigeration air dryer and high temperature refrigeration air dryer. Both of the two types of refrigerated dryer adopt the air cooling technique. Premium components have been used for the products. You can see the features, parameters and models below.

Feature
1. Our refrigerated air dryer comes with a high temperature enclosed type air compressor or normal temperature enclosed type air compressor from famous companies like PERFORMER and MANEUROP from France, and BITZER and COPERLAND from Germany. The compressor features stable rotation, low noise, energy saving, and long service life.

2. The condenser comes with quality and highly efficient threaded pipe which has high heat transmission coefficient. The cylinder is made of stainless steel or zinc-plated steel, avoiding the secondary pollution to the compressed air.

3. All the refrigeration control elements of the refrigerated air dryer come from advanced companies like DANFOSS from Denmark, and ALCO and SPORLAN from the United States. These elements have the throttling and pressure reducing functions of a thermal expansion valves, the energy regulating function of a hot gas by-pass valve, the refrigerant oil protection function of an oil separator, and the refrigerant high/low pressure protection function.

4. The gas-liquid separation is conducted by a gas-liquid separator which combines cyclone separation technique and stainless steel mist catcher. The separation performance is great, and the water won't evaporate again, ensuring good drying performance can be achieved. This refrigerated air dryer has better drying performance than cyclone separator, and lower use-cost than gas-liquid filtering technique. The cost-effectiveness is very good.

Normal temperature air dryer (Air cooled)
Air inlet temperature ≦ 45℃
Cooling type: air cooling
Ambient temperature ≦ 38℃
Pressure dew point: 2-10℃
Inlet pressure: 0.96-1.0MPa
Pressure loss≦ working pressure 5%

Normal temperature air dryer (Air cooled)
ModelAir process loadVoltage Refrige- rating powerFan motor powerAir connection diameterAir volumeN.WDimension
m³/minVHPWN, m³/hKgmm
KSAD-0.5SF0.652201/41×55RC1/2"96545 580×350 ×525
KSAD-1SF1.22201/31×90RC1"189070 640×380 ×545
KSAD-2SF2.52203/41×55RC1"965110 650×430 ×670
KSAD-3SF3.622011×150RC1"3110130 850×450 ×670
KSAD-4.5SF52201.51×240RC1½"5180150 1000×490 ×700
KSAD-6SF6.822022×150RC1½"6220160 1050×550 ×740
KSAD-8SF8.52202.52×195RP2"8470200 1200×530 ×916
KSAD-10SF10.938032×195RP2"8470250 1320×530 ×916
KSAD-12SF12.838032×195RP2"8470300 1100×620 ×1426
KSAD-15SF163803.52×195DN658470320 1500×780 ×1666
KSAD-20SF223804.22×190DN658470420 1540×840 ×1610
KSAD-25SF26.83805.32×250DN8010560550 1610×860 ×1870
KSAD-30SF323806.72×250DN8010560650 1610×920 ×1860
KSAD-40SF43.53808.33×250DN10015640750 260×960 ×1863
KSAD-50SF53380103×250DN10018540830 2240×960 ×1980
KSAD-60SF6738013.33×450DN125180001020 2360×1060 ×1930
KSAD-80SF90380204×550DN1254000013002440×1490 ×1980

High temperature air dryer (Air cooled)
Air inlet temperature ≦80℃
Cooling type: air cooling
Ambient temperature ≦38℃
Pressure dew point: 2-10℃
Inlet pressure: 0.96-1.0MPa
Pressure loss ≦ working pressure 5%

High temperature air dryer (Air cooled)
Model No.Air process loadVoltageRefrige- rating powerFan motor powerAir connection diameterAir volumeN.wDimension
M³/minVHPWN, m³/hKgmm
KSAD-0.5HF0.652201/41×55RC1/2"96545 580×350 ×525
KSAD-1HF1.22201/31×90RC1"189070 640×380 ×545
KSAD-2HF2.52203/42×60RC1"1930140 845×570 ×750
KSAD-3HF3.622012×150RC1"6220160 1020×500 ×760
KSAD-4.5HF52201.54×90RC1½"7560180 1000×500 ×960
KSAD-6HF6.822024×150RC1½"12440210 1100×640 ×1020
KSAD-8HF8.52202.54×195RP2"16940250 1200×350 ×1220
KSAD-10HF10.938034×195RP2"16940270 1300×650 ×1290
KSAD-12HF12.838034×195RP2"169403301440×1140 ×1290
KSAD-15HF163803.54×195DN65169403601560×1160 ×1404
KSAD-20HF223804.24×190DN65169404601640×1240 ×1583
KSAD-25HF26.83805.34×250DN80211206001730×1310 ×1618
KSAD-30HF323806.74×250DN80211207201810×1410 ×1688
KSAD-40HF43.53808.36×250DN100316808702360×1460 ×2100
KSAD-50HF53380106×250DN100316809702360×1560 ×2000
KSAD-60HF6738013.37×460DN1254200012002460×1800 ×2160
KSAD-80HF90380208×550DN1258000014602540×1900 ×2200
