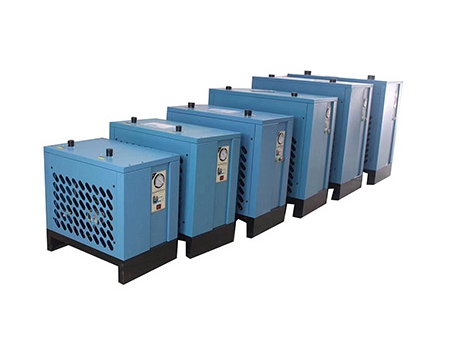

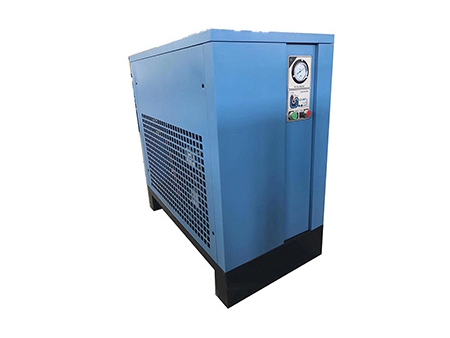

Refrigerated Air Dryer, Air Compressor Dryer
Request a Quote
Technical Parameters
| Compressor Model | JF-7.5AZ | JF-10AZ | JF-15AZ JF-20AZ | JF-25AZ JF-30AZ | JF-40AZ | JF-50AZ | JF-60AZ | JF-75AZ | JF-100AZ | JF-120AZ | JF-150AZ | JF-175AZ JF-200AZ | JF-250AZ JF-270AZ JF-300AZ | JF-350AZ | JF-430AZ | JF-480AZ | JF-540AZ | JF-100T |
| Air Dryer Model | 7.5AC | 10AC | 15AC 20AC | 25AC 30AC | 40AC | 50AC | 60AC | 75AC | 100AC | 120AC | 150AC | 175AC 200AC | 250AC 270AC 300AC | 400AC | 500AC | 600AC | 540AC | 750AC |
| Capacity(m³/min) | 1 | 1.5 | 2.5 | 3.5 | 5.5 | 6.5 | 8.5 | 11.5 | 13.5 | 15.5 | 22 | 25 | 34 | 45 | 55 | 65 | 87 | 110 |
| Working Pressure | 6-10bar | |||||||||||||||||
| Pressure Loss | ≤5% of working pressure | |||||||||||||||||
| Pressure Dew Point | 2-10°C | |||||||||||||||||
| Voltage (v) | 220V/50HZ | 380V/50HZ | ||||||||||||||||
| Power (KW) | 0.5 | 0.5 | 0.7 | 0.9 | 1.0 | 1.0 | 1.6 | 2.0 | 3.0 | 3.1 | 3.68 | 4.41 | 5.15 | 6.62 | 8.82 | 11.03 | 14.7 | 18.4 |
| Fan Power(w) | 80 | 80 | 95 | 120 | 240 | 240 | 300 | 380 | 420 | 480 | 480 | 480 | 720 | 720 | 720 | 760 | 960 | 1440 |
| Outlet/Inlet Diameter | ZG1'' | ZG1'' | ZG1'' | ZG1.5“ | ZG1.5“ | ZG1.5“ | ZG2'' | ZG2.5'' | ZG2.5'' | ZG2.5'' | DN80 | DN80 | DN100 | DN100 | DN125 | DN125 | DN150 | DN150 |
| Inlet Temperature | ≤45℃ | |||||||||||||||||
| Ambient Temperature | ≤38°C | |||||||||||||||||
| Length (mm) | 660 | 770 | 830 | 930 | 930 | 970 | 980 | 1080 | 1120 | 1120 | 1300 | 1300 | 1770 | 1950 | 1950 | 2200 | 2500 | 2700 |
| Width (mm) | 430 | 440 | 465 | 600 | 600 | 585 | 570 | 600 | 700 | 700 | 750 | 750 | 850 | 900 | 1050 | 1325 | 1325 | 1600 |
| Height (mm) | 440 | 730 | 810 | 935 | 935 | 1030 | 1045 | 1030 | 1310 | 1310 | 1330 | 1330 | 1445 | 1560 | 1600 | 1585 | 1695 | 2100 |
| Weight(kg) | 30 | 50 | 54 | 60 | 80 | 95 | 105 | 118 | 180 | 195 | 230 | 240 | 360 | 490 | 560 | 680 | 760 | 970 |
| Remarks: 7.5AC and 10AC used R134a, the above model used R410 | ||||||||||||||||||
