Conductor Reel Stands
Request a Quote

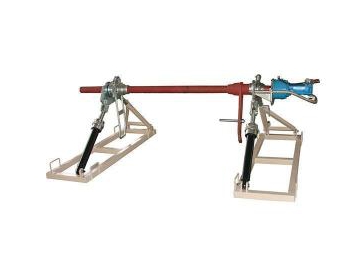

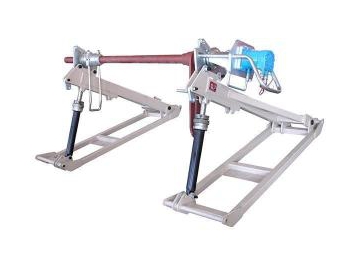

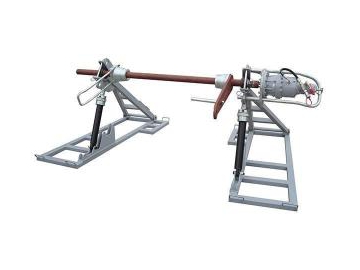

Hydraulic Conductor Reel Stands
| Item number | 15151 | 15152 | 15153 | |
| Model | DW2240A | SIPZ-7H | SIPZ-7K | |
| Applicable reel | Diameter of coil (mm) | Φ1250～2240 | Φ1250～2500 | Φ1800～2800 |
| Max width of coil (mm) | 1400 | 1400 | 1700 | |
| Diameter of axle hole (mm) | Φ80-125 | Φ80-125 | Φ80-160 | |
| Maximum weight (kg) | 5000 | 7000 | 8000 | |
| Max working torque (N.m) | 1200 | 2000 | 2500 | |
| Max Speed (rpm) | 45 | 45 | 45 | |
| Axle diameter | Φ76 | Φ76 | Φ69 | |
| Weight (kg) | 270 | 350 | 350 | |
| Length of hydraulic tube | 13 | 13 | 13 | |
Notes: Connect with hydraulic tensioner or hydraulic puller tensioner throught quick coupling
