  • Key Parameters
    1. Certificate: CE, ISO, SGS
    2. Brand Name: WSX
    3. Laser Power: from 500w to 6kw
    4. Assisted gas pressure: Max.20bar
    5. Product models: NC30, NC12,3D30, 25D30, NC80, NC30B, NC60B, NC60, MN15S, MN15, SW15E, SW15B, SW15, SW20, KC13, KC15S, KC15F, KC15

Technical Specifications:

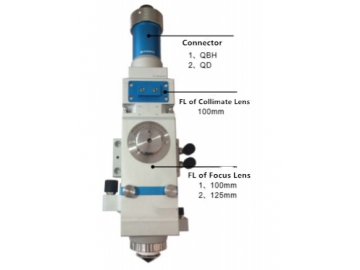

Collimator Focal Length 75mm, 100mm
Focal Length 125mm, 150mm, 200mm
Vertical Adjustment Range ±5mm
Horizontal Adjustment Range ±1.5mm
Clear Aperture 25mm
Max Cutting Gas Pressure 25 Bar
Gross Weight 3.3 kg

Notes: We can supply it with focus lens, protection glass...etc. We have complete solution for you, or supply parts as your need.

  • Max laser power: 6000W.
  • Fit for laser machine IPG, SPI, Rofin, nLight, Coherent, Raycus and Max etc.
  • Can be connected with QBH plug.

Features:

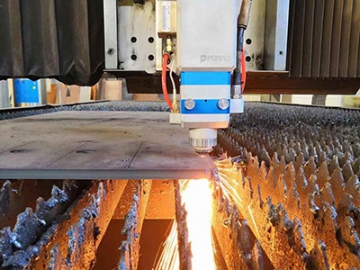

  • This kind laser head has a strong advantage on medium power large format fiber laser cutting application.
  • Completely sealed internal structure of laser head can avoid optical part polluted by dust.
  • Two point centering adjustment of laser head, cam structure focusing, easy to precise control.
  • Protective lens take more convenient replacement drawer installation way.
  • Can be equipped with various kind of QBH connectors laser machine.
