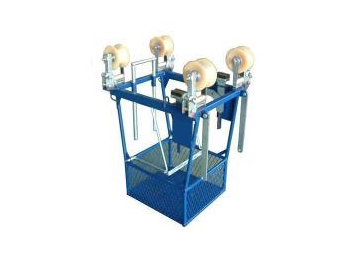

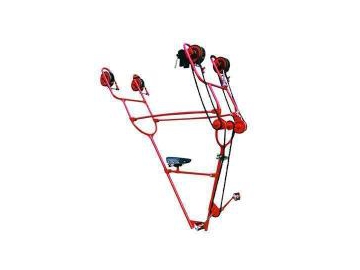

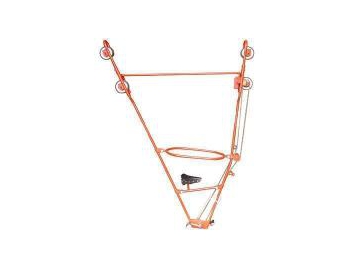

Two Bundle Conductors Line Cart
Request a Quote
| Item number | Model | Rated load (kN) | Maximum through Diameter (mm) | Conductor distance (mm) | Weight (kg) | Remark |
| 17251 | SFS2 | 1 | Φ40 | 400 | 34 | Horizontal |
| 450 | 36 | |||||
| 500 | 38 | |||||
| 17253 | SFS400 | 1 | Φ40 | 400 | 40 | Vertical |
| 17255 | FC400/450S | 1 | Φ60 | 400～450 | 34 | Horizontal |
| 17256 | SFS1-400 | 1.5 | Φ70 | 400 | 38 | Horizontal |
| 17257 | SFS1-450 | 1.5 | Φ70 | 450 | 40 | Horizontal |
Uses: to mount accessories and to overhaul.
Notes: should confirm the distance between conductors before proceeding production
