The MS-540 type 5-axis CNC machine is suitable for machining hardware, watchcases, decorations, stone setting and other batch products. Its workbench is 600x400mm with a maximum load of 200kg. With a positioning accuracy of ±0.005/300, the machined products feature an excellent effect and high precision.

Parameters
Model MS-540
Stroke
X-axis travel mm 500
Y-axis travel mm 400
Z-axis travel mm 300
Spindle nose to the table mm 330
Workbench
Workbench area mm 600x400
Maximum load kg 200
Tool chuck ER20-ER25
Feed
Three-axis fast-moving speed m/min 15000-30000
Cutting feed rate mm/min 1-7000
Spindle
Spindle speed r.p.m 24000-48000
Spindle motor power kw 1.5/2.2/3.0
Other
positioning accuracy mm ±0.005/300
Repeatability mm ±0.005
Mechanical weight kg 3000
Dimensions mm 1550x2200x2200
5-axis CNC machine parts

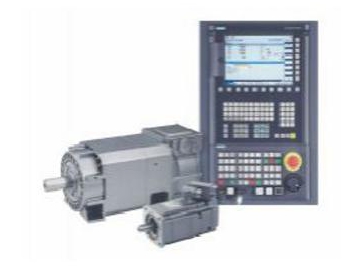

  • Control system and motor

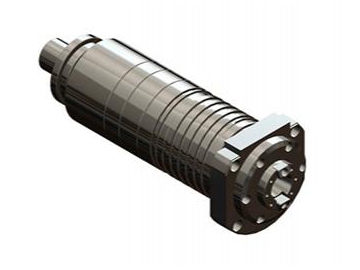

  • Motor spindle, direct drive

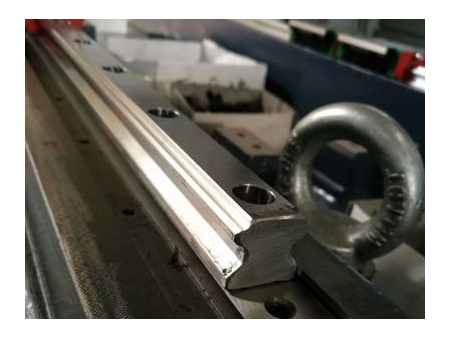

  • Linear guideway operates in a stable manner, features a high processing precision.
