Introduction

When reaping crops, grains may contain small stones and clods. The double layer intake gravity separator can eliminate small stones and clods through the cooperation of wind, sieves and a vibration motor. Firstly, some light impurities are blown away by wind. Then sieves can separate grains from impurities larger or smaller than grains. The vibration motor can speed up the sieve vibration and make the efficiency higher. The double layer intake gravity separator usually is used to remove stones from granular materials in rice mills or feed mills.

SLJ-TQSX grain cleaning machine which has two layer sieves and is driven by vibration motor, has stable operation, less stones contained in grains and better effect.

Parameter
Type Capacity Power Air intake volume Weight Dimensions (L*W*H)
TQSX120*2 9-12T/H 2*0.37Kw 7500-8500M³/Min 590Kg 1650*1570*2260mm
TQSX160*2 12-16T/H 2*0.37Kw 10000-12500M³/Min 800Kg 1650*2100*2260mm
Features
  • The SLJ-TQSX double layer intake gravity separator with enclosed structure can reduce dust and is more environmentally friendly.
  • The double layer intake gravity separator which has user-friendly air adjustment device and negative pressure monitor is simple operation.
  • The intake gravity separator which is driven by vibration motor with small vibration amplitude during operation is stable in operation, compact structure, small occupation and stable mechanical properties.
  • The SLJ-TQSX grain cleaning machine which has two layer sieves is stable operation, less stones contained in cleaned grains and better effect.

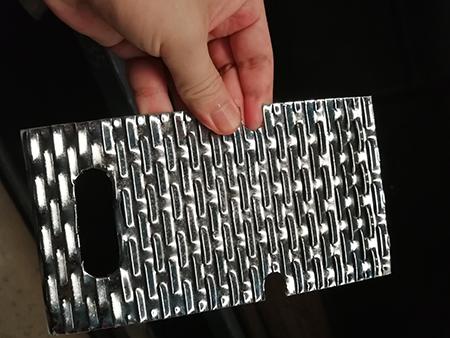

  • Fish Scale Sieve Plate

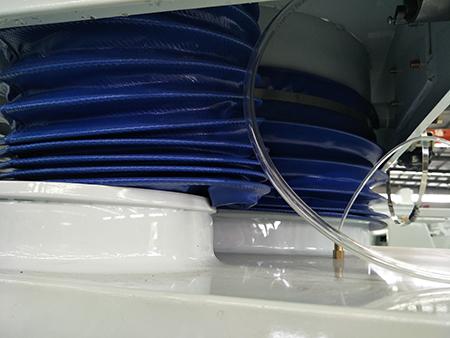

  • Air Suction Bag

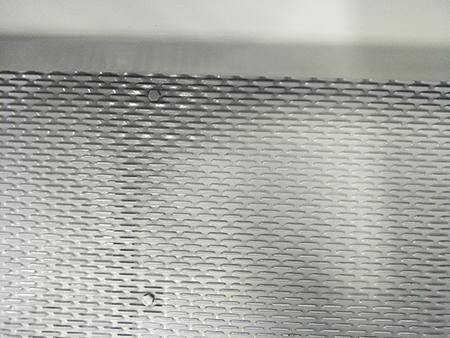

  • Fish Scale Sieve
Effect comparison after multiple screening
  • Before
  • After
  • Stone Impurity
