Introduction

When reaping crops, grains may be contaminated by small stones and clods. The SYX-TQSX2 double layer intake gravity separator can eliminate small stones and clods through the cooperation of wind, sieves and vibration motor. Firstly, some light impurities are blowed away by wind. Then sieves can separate grains from impurities larger or smaller than grains. Besides, the vibration motor can hasten the vibration and make the efficiency higher. The gravity separator usually is used to remove stones from granular materials in rice mills or feed mills.

SYX-TQSX2 grain cleaning machine which has two layer sieves and is driven by vibration motor, has stable operation, less stones contained in grains and better effect.

Parameter
Type Capacity Power Air intake volume Weight
TQSX120*2 6-10T/H 0.3*2Kw 600Kg 1622*1511*1780mm
TQSX150*2 8-12T/H 0.3*2Kw 710Kg 1640*1837*1852mm
Features
  • The gravity separator driven by vibration motor has stable operation and mechanical properties.
  • The grain and seed cleaner has compact structure and small occupation because the dimension only is 1622*1511*1780mm or 1640*1837*1852mm.
  • The SYX-TQSX2 grain cleaning machine is sealed structure which reduces the dust coming from the processing of cleaning. The gravity separator has air adjustment device and negative pressure monitor.
  • Operator can observe the inside of the gravity separator thanks to the installed fluorescent lighting system.

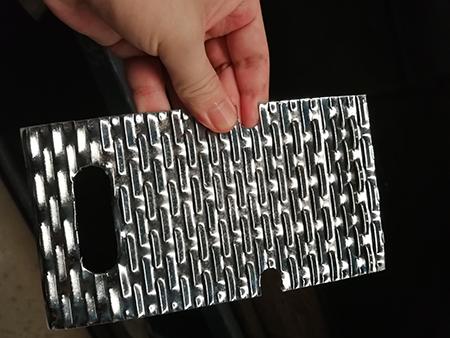

  • Fish Scale Sieve Plate

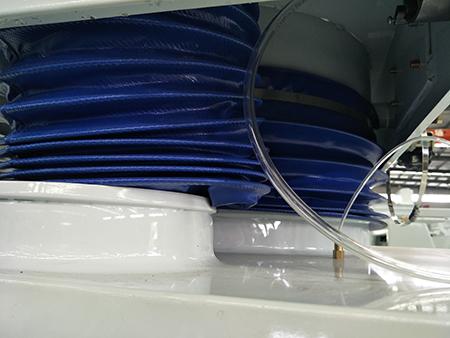

  • Air Suction Bag

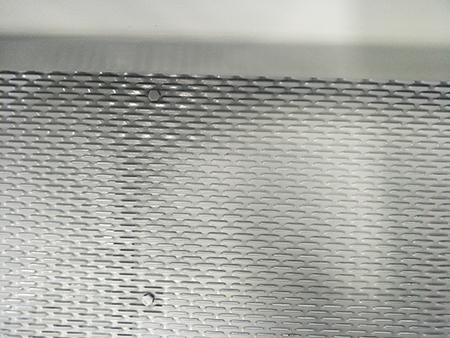

  • Fish Scale Sieve
Effect comparison after multiple screening
  • Before
  • After
  • Stone Impurity
