Powder Forming Machine YH765

Powder Forming Machine YH765
Powder Forming Machine YH765
Powder Forming Machine YH765
Request a Quote

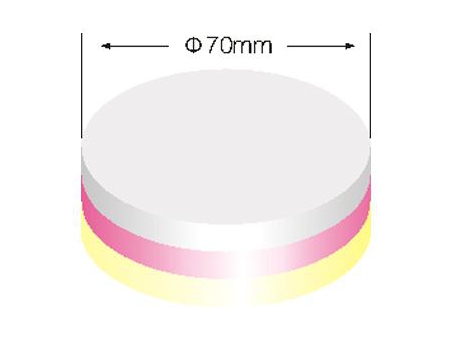

The powder forming machine YH765 is designed to form powders in pharmaceutical, chemical, food, electronic, chemical fertilizer and ceramic industrial applications. It can also press a variety of granular materials or powder materials into tablets, such as round tablets, irregular-shaped tablets, engraved tablets, and ring type tablets. If required, this powder forming machine can also press single layer tablets, double layer tablets, or triple layer tablets.

Specification:
Model YH25 YH30
Number of Stations 25 30
Main Compression Force (kN) 250 250
Maximum Tablet Diameter (mm) 70 50
Depth of Fill (mm) 60 60
Maximum Tablet Thickness (mm) 25 25
Max. Turret RPM (r/min) 16 16
Max. Output (pcs/h) 24000 28800
Motor Power (kW) 11 11
Overall Size (mm) 1520x1480x2600 1520x1480x2600
Approx. Net Weight (Kg) 8500 8500
