Powder Forming Machine YH15/YH17/YH20
Request a Quote

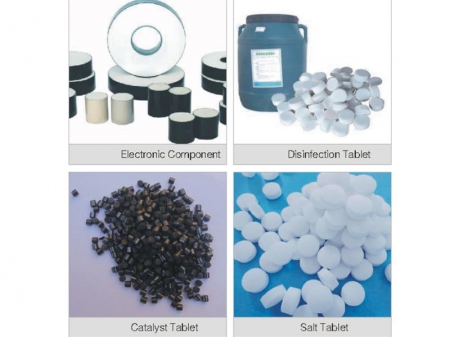

This powder forming machine YH20 is a special piece of equipment used to form powders in petroleum, chemical, metallurgical, pharmaceutical, electronic, food and light industrial applications. It can be used as a rice powder forming machine, an egg powder forming machine, a fish powder forming machine, a potato powder forming machine, etc. With different molds, the machine can press the powdered materials into various shapes.
Specification:
| Model | YH15 | YH17 | YH20 |
| Number of Stations | 15 | 17 | 20 |
| Main Compression Force (kN) | 250 | 250 | 250 |
| Maximum Tablet Diameter (mm) | 55 | 50 | 40 |
| Depth of Fill (mm) | 70 | 70 | 57 |
| Maximum Tablet Thickness (mm) | 32 | 32 | 25 |
| Max. Turret RPM (r/min) | 12 | 12 | 12 |
| Max. Output (pcs/h) | 10800 | 12240 | 14400 |
| Motor Power (kW) | 7.5 | 7.5 | 7.5 |
| Overall Size (mm) | 1660x1220x1870 | 1660x1220x1870 | 1660x1220x1870 |
| Approx. Net Weight (Kg) | 3800 | 3800 | 3800 |
