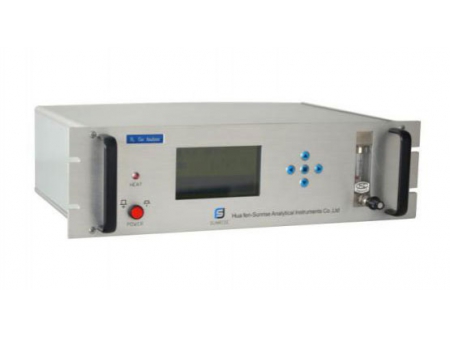

Thermal Conductivity Gas Analyzer SR-2050Ex
Request a Quote
Introduction
- Principle: The thermal conductivity gas analyzer is an instrument for analyzing gas composition by measuring the change of thermal conductivity of mixed gases. It can be used to measure H2, He and other gases.
- Advantages: The traditional thermal conductivity gas analyzer has many shortcomings in a low range measurement. For example, it cannot detect trace components because the sensor has low detection sensitivity and is greatly affected by background gas. The micro-sensor (MEMS) manufactured by HFSR company features a high precision and integration micro-processing technology that has a high detection accuracy and stable performance.
Main specifications
| Range | 0-100% |
| Scale interval | 0.001 |
| Repeatability | ±2% FS |
| Zero drift | £±2% FS/7D |
| Span drift | £±2% FS/7D |
| Response time | T90< 5S |
| Sample gas flow rate | 500mL/min |
| Preheating time | 15min(Can be operated); 30min(maximum accuracy) |
| Signal output | 4-20mA/750Ω, RS485/232 (Optional) |
| Alarm | High-limit alarm, low-limit alarm |
| Temperature and humidity | 0-45°C, 20-80%RH |
| Power supply | 220VAC, 50Hz, adjustable to local frequency |
Selection Guide
- Type: Hydrogen Analyzer SR-2050A
Intelligent, digital display
- Type: Hydrogen Analyzer SR-2050B
Intelligent, LCD display with function of trend map
Application areas
Thermal conductivity gas analyzers are widely used in chemical fertilizer, petroleum, chemical industry, metallurgy, power, hydrogen production and biogas fermentation industries.
- Ammonia Production Gas Analyzing
- Air Separation Gas Analysis
