Technical Data
Accuracy Min. processing width ≥60mm
Max. processing height 10-25mm
Max. panel length ≥120mm
Edge thickness 0.4-3mm
Control system Yonghong FATEK control system
Drive system Yonghong FATEK PLC
Yonghong control panel
Feed speed 18—22m/min
Total power 22KW
Dimension 4500*900*1700mm
Inverter INVT inverter
Input voltage 380V N
Air pressure 0.6Mps
Lubrication system Automatic lubrication system

HKJ-568 automatic edgebander is perfect for edge banding of panel furniture and cabinet doors without handles, it is an ideal alternative to conventional manual edge banding machine. Coupled with professional design software, this edgebander machine can realize intelligent manufacturing, greatly reducing both labor intensity and production time. This edge banding machine adopts advanced components including TaiBang motor, UFC high speed motor, Yonghong PLC display, INVT inverter, Schneider contactor, AirTAC/Yiri pneumatic components, Autonics temperature controller, etc. Besides, the machine is equipped with independently operated control panel for easy operation and automatic lubrication system for longer service life.

Functions

45 degree cutting, bevel edge gluing, straight edge gluing, bevel edge pressing, straight edge pressing, end trimming, top rough trimming & bottom fine trimming, bottom scraping, flat scraping, polishing, automatic lifting, automatic lubrication.

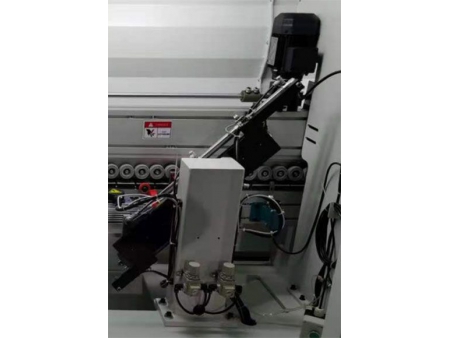

  • 45 degree cutting
  • Bevel edge gluing and pressing
  • Straight edge gluing and pressing
  • End trimming

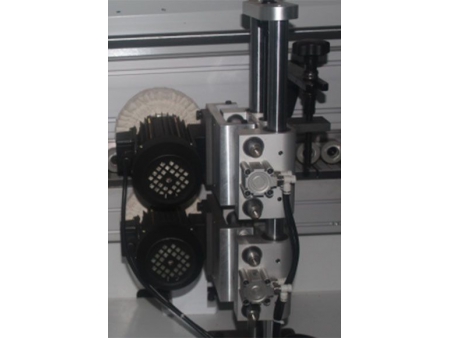

  • Top rough trimming & bottom fine trimming
  • Bottom scraping
  • Flat scraping
  • Polishing
