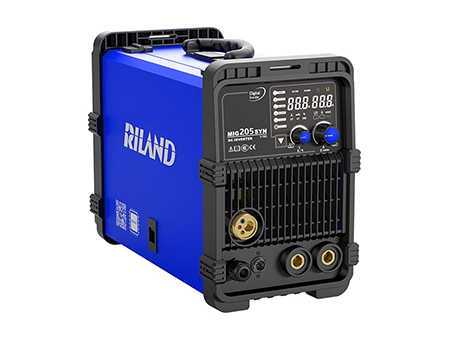

MIG 185SYN & MIG 205SYN

Features
  • IGBT inverter, equipped with exclusive chip-RICHIP, drives powerful welding performance;
  • 5 in 1 multi-process: gas MIG, gas-less MIG, spool-gun MIG, MMA & Lift-TIG;
  • Segment code screen easy shows and adjust the welding parameter, inductance and arc length can be micro adjusted, standard with 2T/4T function;
  • Expert parameters built-in, synergic control the voltage and current for easy and better welding;
  • Stable welding performance on small current around 40A, which enhance the capacity to weld thinner metal, even 0.8mm sheet;
  • VRD, hot start and arc force function built-in, make you enjoy welding with desired welding shape;
  • Spool gun adaptive, enrich the compatibility for more demands, such as Aluminum;
  • Wire inching function act as you press the trigger about 3s under no load;
  • Fan as needed, reduce noise and dust inside the machine;
  • Compact and portable with handle, and reserved shoulder strap mounting holes;
  • Intelligent protection: over-current, over-voltage, over heating protection;

Specifications
Model MIG 185SYN MIG 205SYN
Power voltage (V) 1 phase 230V±15% 1 phase 230V±15%
Frequency (Hz) 50/60 50/60
Rated input current (A) MIG: 29 (Ieff=13) TIG: 21.7 (Ieff=11.9) MMA: 29.6 (Ieff=13.2) MIG: 33.6 (Ieff=15) TIG: 21.7 (Ieff=11.9) MMA: 29.6 (Ieff=13.2)
Output current adjustment (A) 30-180 (MIG) 10-180 (TIG) 20-160 (MMA) 30-200 (MIG) 10-180 (TIG) 20-160 (MMA)
Output voltage range (V) 15.5-23(MIG) 10.4-17.2 (TIG) 20.8-26.4 (MMA) 15.5-24(MIG) 10.4-17.2 (TIG) 20.8-26.4 (MMA)
Duty cycle (%)/ 40℃ 20%@180A /23V (MIG) 30%@180A/17.2V (TIG) 20%@160A/26.4V (MMA) 20%@200A /24V (MIG) 30%@180A/17.2V (TIG) 20%@160A/26.4V (MMA)
No-load voltage(V) 61 61
Power factor 0.73 0.73
Efficiency (%) 85 85
Type of wire feeder Internal Internal
Wire feed speed (m/min) 3-11m/min 3-12m/min
Post flow time (S) 3 3
Welding wire diameter (mm) 0.8/(0.9)/1.0mm 0.8/(0.9)/1.0mm
Insulation class H H
Housing protection grade IP21 IP21
Welding thickness (mm) More than 0.8mm More than 0.8mm
Weight (kg) 7.5kg 8kg
Overall dimension (mm) 428×211×338 428×211×338

Package Included

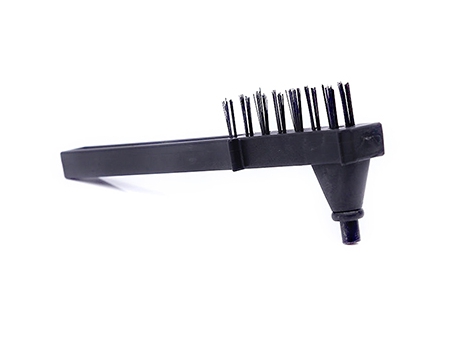

  • Steel brush hammer

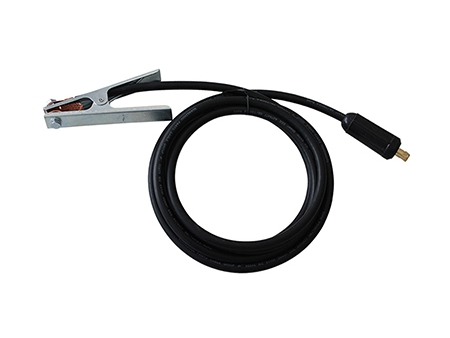

  • Earth clamp

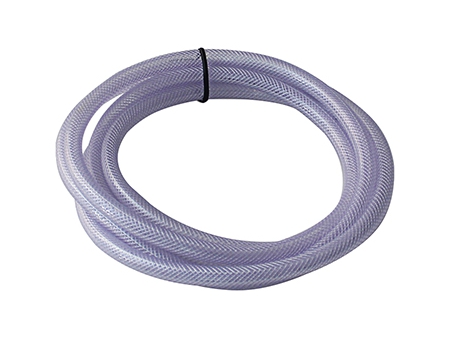

  • Gas hose

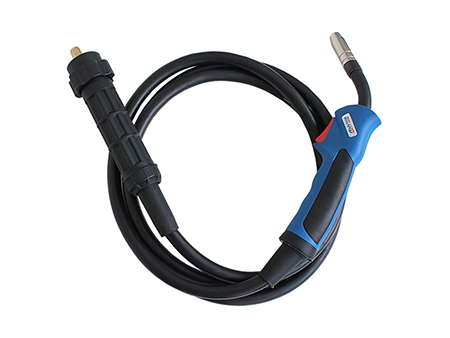

  • MIG torch

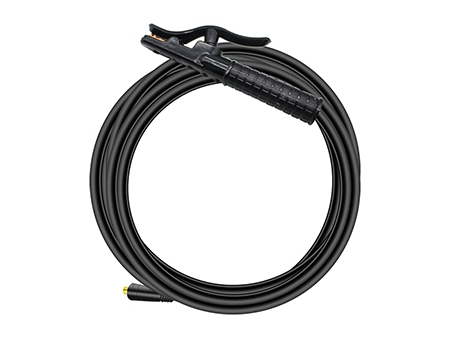

  • 1 set electrode holder

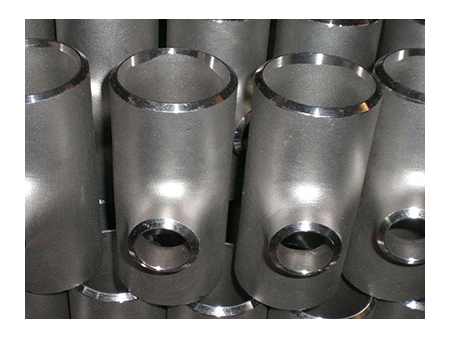

Applications
Optional Welding Accessories

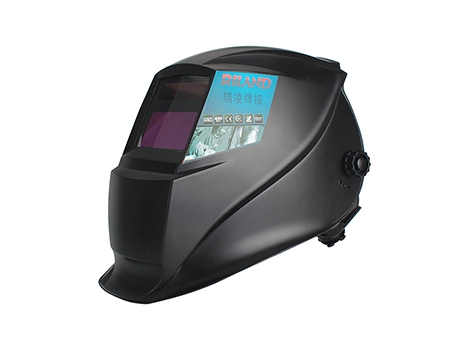

  • Auto-darkening welding helmet

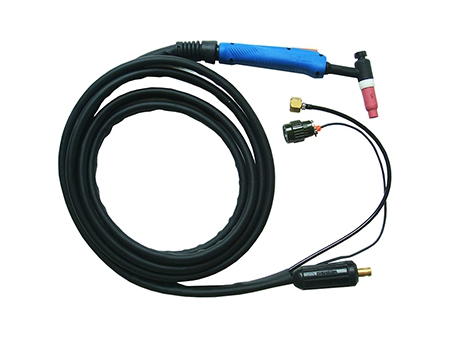

  • TIG torch

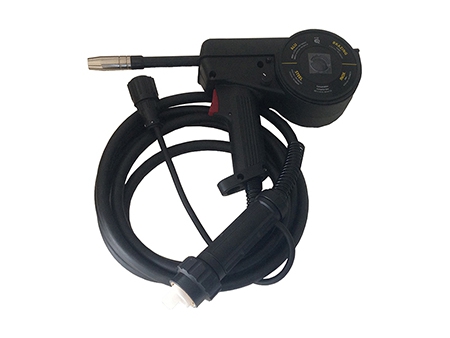

  • Spool gun
