MIG 175SYN
Features
- IGBT inverter, equipped with exclusive chip-RICHIP, drives powerful welding performance;
- 5 in 1 multi-process: gas MIG, gas-less MIG, spool-gun MIG, MMA & Lift- TIG;
- Segment code screen easy shows and adjust the welding parameter, inductance and arc length can be micro adjusted, standard with 2T/4T function;
- Expert parameters built-in, synergic control the voltage and current for easy and better welding;
- Stable welding performance on small current around 40A, which enhance the capacity to weld thinner metal, even 0.8mm sheet;
- VRD, hot start and arc force function built-in, make you enjoy welding with desired welding shape;
- Spool gun adaptive, enrich the compatibility for more demands, such as aluminum;
- Wire inching function act as you press the trigger about 3s under no load;
- Fan as needed, reduce noise and dust inside the machine;
- Compact and portable with handle, and reserved shoulder strap mounting holes;
- Intelligent protection: over-current, over-voltage, over heating protection;
Specifications
| Model | ||
| Power voltage (V) | 1 phase 115V±15% | 1 phase 230V±15% |
| Frequency (Hz) | 50/60 | 50/60 |
| Rated input current (A) | MIG: 39 (Ieff=14.9) TIG: 21 (Ieff=10.5) MMA: 36 (Ieff=14) | MIG: 23.6 (Ieff=10.6) TIG: 17.6 (Ieff=9.6) MMA: 23 (Ieff=10.3) |
| Output current adjustment (A) | 30-140 (MIG) 10-110 (TIG) 20-110 (MMA) | 30-160 (MIG) 10-160 (TIG) 20-140 (MMA) |
| Output voltage range (V) | 15.5-21 (MIG) 10.4-14.4 (TIG) 20.8-24.4 (MMA) | 15.5-22(MIG) 10.4-16.4 (TIG) 20.8-25.6 (MMA) |
| Duty cycle (%)/ 40℃ | 20%@140A /21V (MIG) 25%@110A/14.4V (TIG) 15%@110A/24.4V (MMA) | 25%@160A /22V (MIG) 30%@160A/16.4V (TIG) 20%@140A/24.4V (MMA) |
| No-load voltage(V) | 61 | |
| Power factor | 0.73 | |
| Efficiency (%) | 85 | |
| Type of wire feeder | Internal | |
| Wire feed speed (m/min) | 3-6m/min | 3-10m/min |
| Post flow time (S) | 3 | |
| Welding wire diameter (mm) | 0.8/0.9mm | 0.8/0.9/1.0mm |
| Insulation class | H | |
| Housing protection grade | IP21 | |
| Welding thickness (mm) | 0.8mm | |
| Weight (kg) | 7kg | |
| Overall dimension (mm) | 428×211×338 | |
Package Included
- Steel brush hammer

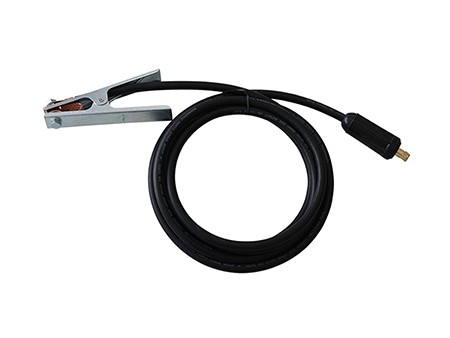

- Earth clamp

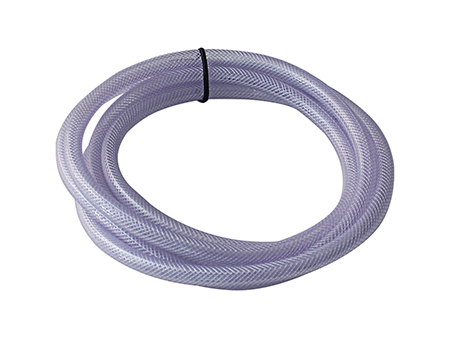

- Gas hose

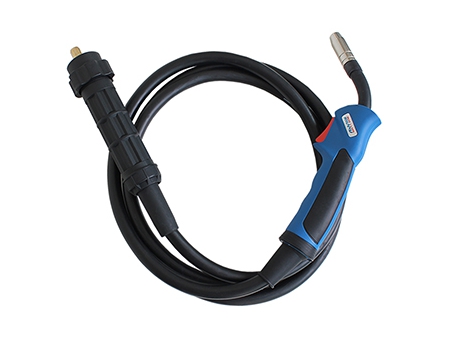

- MIG torch

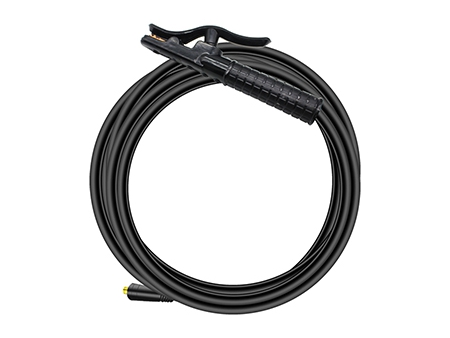

- 1 set electrode holder
Applications
Optional Welding Accessories

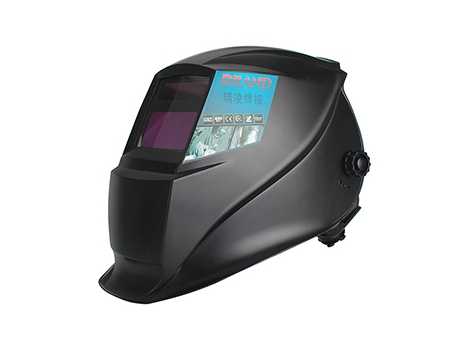

Auto-darkening welding helmet

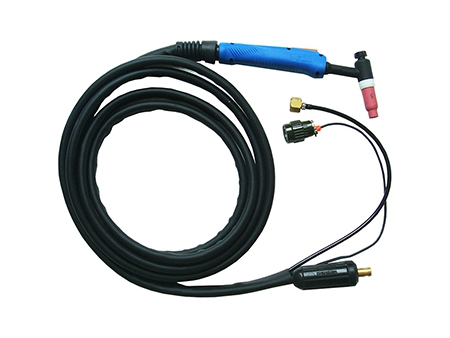

TIG torch

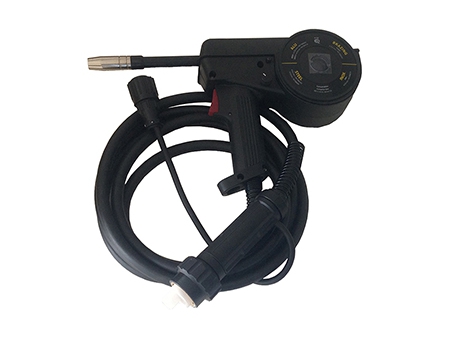

Spool gun
