10 Buckle Paper Folding Machine
Request a Quote

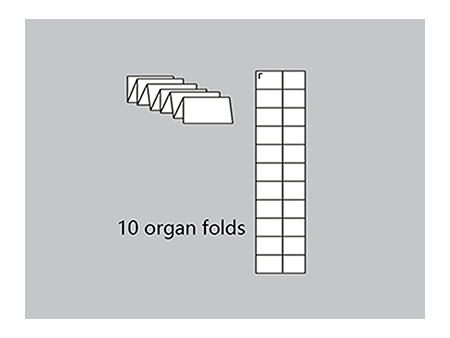

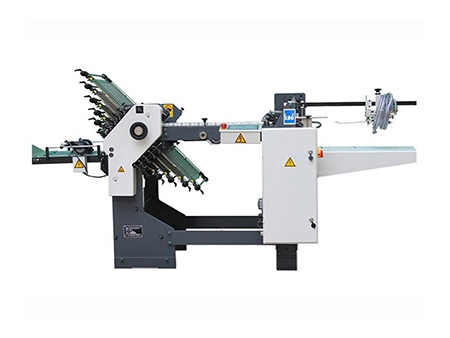

KMD’s 10 buckle paper folding machine has the maximum paper size of 470×750mm. The folding machine is equipped with 10 buckle plates in order to achieve a 10 times parallel folding, and it can also be equipped with 2 tail buckles, 4 tail buckles, 6 tail buckles, 8 tail buckles, or 10 tail buckles according to the requirements to achieve different complex folding methods such as: half folding, double parallel folding, roll folding and more.
Parameters- Max feeding sheet size (W*L): 470*750mm
- Min feeding sheet size (W*L): 50*100mm
- Sheet range: 40-157g
- Max folding roller speed: 180m/min
- Max. height of paper heap: 500mm
- Machine power: 3.7kw
- Machine netweight: 530kg
- Overall dimension (L*W*H) : 2800*1000*1415mm
