4 Buckle Paper Folding Machine

4 Buckle Paper Folding Machine
4 Buckle Paper Folding Machine
4 Buckle Paper Folding Machine
Request a Quote

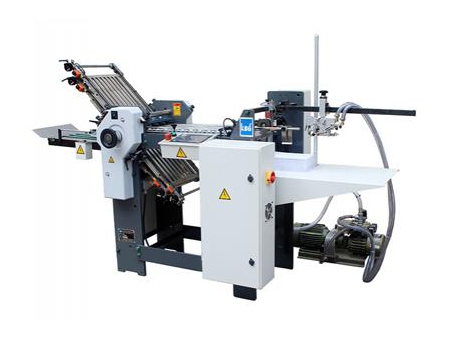

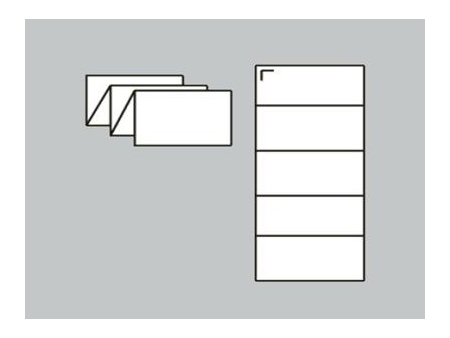

KMD’s 4 buckle paper folding machine has a maximum paper size of 520×750mm and is equipped with 4 buckle plates. It can directly carry out 4 times parallel folding, and it can also be equipped with 2 tail buckles, 4 tail buckles, 6 tail buckles, 8 tail buckles, or 10 tail buckles according to customer requirements to achieve different complex folding methods such as: half folding, double parallel folding, roll folding and more.

Parameters
  • Max feeding sheet size (W*L): 520*750mm
  • Min feeding sheet size (W*L): 130*100mm
  • Sheet range: 40-180g
  • Max folding roller speed: 180m/min
  • Max. height of paper heap: 500mm
  • Machine power: 3kw
  • Machine netweight: 650kg
  • Overall dimension (L*W*H): 3000*1200*1450mm
  • Max folding knife stroke: 200times/min
