Request a Quote

With premium abrasive non-woven synthetic fiber mesh coated with refined aluminum oxide grain or zirconia grain resin, these non-woven interleaf mounted flap wheels are designed for softer and more flexible grinding, cleaning, finishing and polishing applications. They are outstanding for maintenance and finishing jobs and can even be used to remove rust. They are widely used on metals, plastic, rubber, and wood with high uniformity.

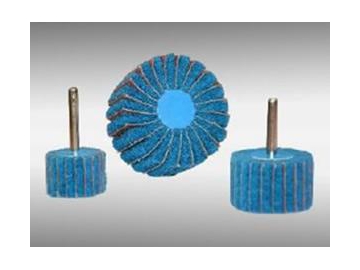

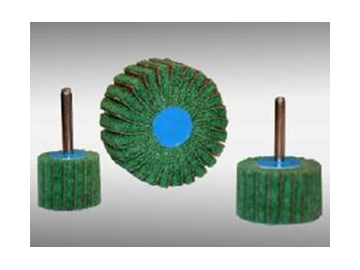

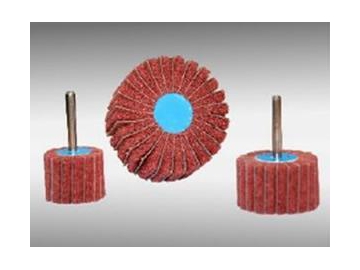

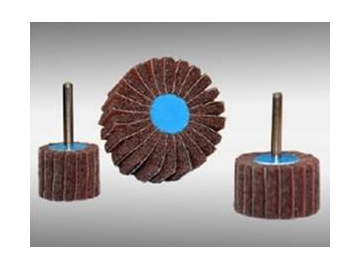

JAC-K716GM Non-Woven Interleaf Mounted Flap Wheels
Availability
Product Code JAC-K726GM JAC-K727KM JAC-K728TM JAC-K729LM
Abrasive Grains Refined Alumina Oxide Refined Alumina Oxide Refined Alumina Oxide Refined Alumina Oxide
Backing Cloth Type X-Flex cotton/Non-woven X-Flex cotton/Non-woven X-Flex cotton/Non-woven X-Flex cotton/Non-woven
Flap Mounted Versions Interleaf Interleaf Interleaf Interleaf
Straight Steel Shank Size Straight Shank-1/4" Straight Shank-1/4" Straight Shank-1/4" Straight Shank-1/4"
BRITSH SIZE METRIC SIZE OPT MAX STD GRIT PART # PART # PART # PART #
( D x W x S ) ( D x W x S ) RPM RPM PACK
1-3/16" x 3/4" x 1/4" 30 x 20 x 6 mm 17,100 23,800 10 CRS/A80 70001 70002 70003 70004
MED/A120 70014 70015 70016 70017
FIN/A180 70027 70028 70029 70020
VFN/A320 70030 70031 70032 70033
      VFN/A400 70043 70044 70045 70046
1-3/16" x 1" x 1/4" 30 x 25 x 6 mm 17,100 23,800 10 CRS/A80 70056 70057 70058 70059
MED/A120 70069 70060 70061 70062
FIN/A180 70072 70073 70074 70075
VFN/A320 70085 70086 70087 70088
      VFN/A400 70098 70099 70090 70091
1-3/16" x1-3/16"x1/4" 30 x 30 x 6 mm 17,100 23,800 10 CRS/A80 70101 70102 70103 70104
MED/A120 70114 70115 70116 70117
FIN/A180 70127 70128 70129 70120
VFN/A320 70130 70131 70132 70133
      VFN/A400 70143 70144 70145 70146
1-1/2" x 3/4" x 1/4" 40 x 20 x 6 mm 17,100 23,800 10 CRS/A80 70156 70157 70158 70159
MED/A120 70169 70160 70161 70162
FIN/A180 70172 70173 70174 70175
VFN/A320 70185 70186 70187 70188
      VFN/A400 70198 70199 70190 70191
1-1/2" x 1" x 1/4" 40 x 25 x 6 mm 17,100 23,800 10 CRS/A80 70201 70202 70203 70204
MED/A120 70214 70215 70216 70217
FIN/A180 70227 70228 70229 70220
VFN/A320 70230 70231 70232 70233
      VFN/A400 70243 70244 70245 70246
1-1/2" x1-3/16"x1/4" 40 x 30 x 6 mm 17,100 23,800 10 CRS/A80 70256 70257 70258 70259
MED/A120 70269 70260 70261 70262
FIN/A180 70272 70273 70274 70275
VFN/A320 70285 70286 70287 70288
      VFN/A400 70298 70299 70290 70291
2" x 3/4" x 1/4" 50 x 20 x 6 mm 13,700 19,000 10 CRS/A80 70301 70302 70303 70304
MED/A120 70314 70315 70316 70317
FIN/A180 70327 70328 70329 70420
VFN/A320 70430 70431 70432 70433
      VFN/A400 70443 70444 70445 70446
2" x 1" x 1/4" 50 x 25 x 6 mm 13,700 19,000 10 CRS/A80 70456 70457 70458 70459
MED/A120 70469 70460 70461 70462
FIN/A180 70472 70473 70474 70475
VFN/A320 70485 70486 70487 70488
      VFN/A400 70498 70499 70490 70491
2" x1-3/16 "x 1/4" 50 x 30 x 6 mm 13,700 19,000 10 CRS/A80 70501 70502 70503 70504
MED/A120 70514 70515 70516 70517
FIN/A180 70527 70528 70529 70520
VFN/A320 70530 70531 70532 70533
      VFN/A400 70543 70544 70545 70546
2" x 1-1/2" x 1/4" 50 x 40 x 6 mm 13,700 19,000 10 CRS/A80 70556 70557 70558 70559
MED/A120 70569 70560 70561 70562
FIN/A180 70572 70573 70574 70575
VFN/A320 70585 70586 70587 70588
      VFN/A400 70598 70599 70590 70591
2-1/2" x 3/4" x 1/4" 60 x 20 x 6 mm 11,500 16,100 10 CRS/A80 70601 70602 70603 70604
MED/A120 70614 70615 70616 70617
FIN/A180 70627 70628 70629 70620
VFN/A320 70630 70631 70632 70633
      VFN/A400 70643 70644 70645 70646
2-1/2" x 1" x 1/4" 60 x 25 x 6 mm 11,500 16,100 10 CRS/A80 70656 70657 70658 70659
MED/A120 70669 70660 70661 70662
FIN/A180 70672 70673 70674 70675
VFN/A320 70685 70686 70687 70688
      VFN/A400 70698 70699 70690 70691
2-1/2"x1-3/16 "x 1/4" 60 x 30 x 6 mm 11,500 16,100 10 CRS/A80 70701 70702 70703 70704
MED/A120 70714 70715 70716 70717
FIN/A180 70727 70728 70729 70720
VFN/A320 70730 70731 70732 70733
      VFN/A400 70743 70744 70745 70746
2-1/2"x 1-1/2" x 1/4" 60 x 40 x 6 mm 11,500 16,100 10 CRS/A80 70756 70757 70758 70759
MED/A120 70769 70860 70861 70862
FIN/A180 70872 70873 70874 70875
VFN/A320 70885 70886 70887 70888
      VFN/A400 70898 70899 70890 70891
2" x 2" x 1/4" 60 x 50 x 6 mm 11,500 16,100 10 CRS/A80 70901 70902 70903 70904
MED/A120 70914 70915 70916 70917
FIN/A180 70927 70928 70929 70920
VFN/A320 70930 70931 70932 70933
      VFN/A400 70943 70944 70945 70946
3" x 3/4" x 1/4" 75 x 20 x 6 mm 8,600 11,800 10 CRS/A80 70956 70957 70958 70959
MED/A120 70969 70960 70961 70962
FIN/A180 70972 70973 70974 70975
VFN/A320 70985 70986 70987 70988
      VFN/A400 70998 70999 70990 70991
3" x 1" x 1/4" 75 x 25 x 6 mm 8,600 11,800 10 CRS/A80 71001 71002 71003 71004
MED/A120 71014 71015 71016 71017
FIN/A180 71027 71028 71029 71020
VFN/A320 71030 71031 71032 71033
      VFN/A400 71043 71044 71045 71046
3" x 1-3/16 "x 1/4" 75 x 30 x 6 mm 8,600 11,800 10 CRS/A80 71056 71057 71058 71059
MED/A120 71069 71060 71061 71062
FIN/A180 71072 71073 71074 71075
VFN/A320 71085 71086 71087 71088
      VFN/A400 71098 71099 71090 71091
3" x 1-1/2 x 1/4" 75 x 40 x 6 mm 8,600 11,800 10 CRS/A80 71101 71102 71103 71104
MED/A120 71114 71115 71116 71117
FIN/A180 71127 71128 71129 71120
VFN/A320 71130 71131 71132 71133
      VFN/A400 71143 71144 71145 71146
3" x 2" x 1/4" 75 x 50 x 6 mm 8,600 11,800 10 CRS/A80 71156 71157 71158 71159
MED/A120 71169 71160 71161 71162
FIN/A180 71172 71173 71174 71175
VFN/A320 71185 71186 71187 71188
      VFN/A400 71198 71199 71290 71291
3-3/16" x 3/4" x 1/4" 80 x 20 x 6 mm 8,000 10,000 10 CRS/A80 71301 71302 71303 71304
MED/A120 71314 71315 71316 71317
FIN/A180 71327 71328 71329 71320
VFN/A320 71330 71331 71332 71333
      VFN/A400 71343 71344 71345 71346
3-3/16" x 1" x 1/4" 80 x 25 x 6 mm 8,000 10,000 10 CRS/A80 71356 71357 71358 71359
MED/A120 71369 71360 71361 71362
FIN/A180 71372 71373 71374 71375
VFN/A320 71385 71386 71387 71388
      VFN/A400 71398 71399 71390 71391
3-3/16" x1-3/16"x 1/4" 80 x 30 x 6 mm 8,000 10,000 10 CRS/A80 71401 71402 71403 71404
MED/A120 71414 71415 71416 71417
FIN/A180 71427 71428 71429 71420
VFN/A320 71430 71431 71432 71433
      VFN/A400 71443 71444 71445 71446
3-3/16" x 1-1/2" x 1/4" 80 x 40 x 6 mm 8,000 10,000 10 CRS/A80 71456 71457 71458 71459
MED/A120 71469 71460 71461 71462
FIN/A180 71472 71473 71474 71475
VFN/A320 71485 71486 71487 71488
      VFN/A400 71498 71499 71490 71491
3-3/16" x 2" x 1/4" 80 x 50 x 6 mm 8,000 10,000 10 CRS/A80 71501 71502 71503 71504
MED/A120 71514 71515 71516 71517
FIN/A180 71527 71528 71529 71520
VFN/A320 71530 71531 71532 71533
VFN/A400 71543 71544 71545 71546
