Description of the Air Tank
The air tank, also known as compressed air storage tank, is a kind of pressure vessel specially used for storing compressed air. It is used to store and buffer compressed air, avoid air compressor frequent loading and unloading, and getting rid of most of the liquid water, mainly with air compressor, refrigeration dryer and filter matching, composition of industrial production on the power source, the compressed air station.

Structure Composition of the Air Tank
Air tank is generally composed of cylinder, dished head, flange, connector, sealing elements and support. Besides, there are other attachments such as safety value, pressure gauge and drain value.

Application
The air receiver is a kind of pressure vessel specially used for storing compressed air. It is used to store and buffer compressed air, avoid air compressor frequent loading and unloading, and getting rid of most of the liquid water, mainly with air compressor, refrigeration dryer and filter matching, composition of industrial production on the power source, the compressed air station.

Technical Parameters of the Compressed Air Receiver Tank

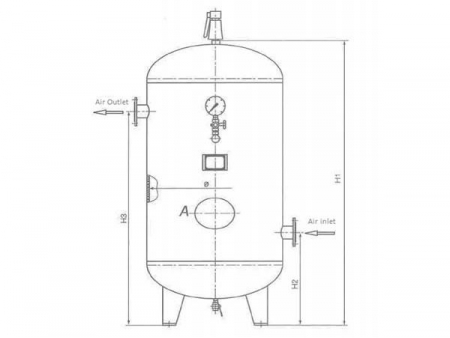

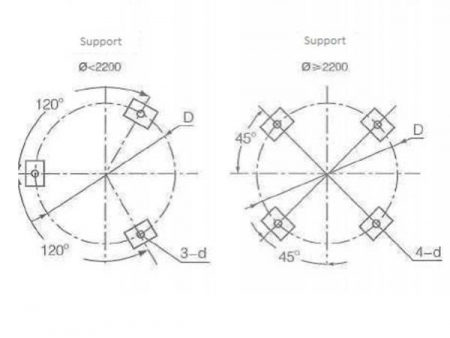

NO. Specification Design Temp ℃ Total HH1 Inner dia. Φ Air inlet Air outlet Support Relief valve connector Blowoff valve connector
Volume/Pressure H2 DN Thread H3 DN Thread D d
1 0.1/0.8 110 1103 400 479 Rp1/2 804 Rp1/2 Rp1/2 R1/2
2 0.1/1.0 1103 400 479 804
3 0.2/0.8 110 1230 550 505 Rp1 1000 Rp1 Rp1/2 R1/2
4 0.2/1.0 1230 550 505 1000
5 0.3/0.8 110 1589 550 642 50 Rp11/2 1242 50 Rp11/2 400 20 Rp1/2 R1/2
6 0.3/1.0 1589 642 1242
7 0.6/1.0 110 1900 700 680 65 Rp11/2 1550 65 Rp11/2 490 24 Rp1/2 R1/2
8 0.6/0.8 1902 681 1551
9 1.0/0.8 110 2305 800 690 65 Rp11/2 1920 65 Rp11/2 560 24 Rp3/4 R1/2
10 1.0/1.0 2307 691 1921
11 1.5/0.8 110 2265 1000 760 65 Rp2 1810 65 Rp2 700 24 Rp3/4 R1/2
12 1.5/1.0 2265 760 1810
13 2.0/1.0 110 2780 1000 760 80 Rp2 2320 80 Rp2 700 24 Rp11/2 R1/2
14 2.0/1.0 2780 760 2320
15 2.5/0.8 110 3300 1000 760 80 2840 80 700 24 Rp11/2 R1/2
16 2.5/1.0 3300 760 2840
17 3.0/0.8 110 2920 1200 850 80 2410 80 906 24 Rp11/2 R3/4
18 3.0/1.0 2922 851 2411
19 4.0/0.8 110 3030 1400 910 100 2470 100 1050 24 Rp11/2 R3/4
20 4.0/1.0 3032 911 2471
21 5.0/0.8 110 3630 1400 910 100 2990 100 1050 24 Rp2 R3/4
22 5.0/1.0 3632 911 2991
23 6.0/0.8 110 4230 1400 910 100 3620 100 1050 24 Rp2 R3/4
24 6.0/0.8 4232 911 3621
25 8.0/0.8 110 3154 2000 1082 125 2362 125 1500 32 Rp2 R3/4
26 8.0/1.0 3156 1083 2363
27 10.0/0.8 110 3754 2000 1082 150 2962 150 1500 32 Rp21/2 R3/4
28 10.0/1.0 3756 1083 2963
29 12.0/0.8 110 4354 2000 1082 150 3562 150 1500 32 Rp21/2 R3/4
30 12.0/1.0 4356 1083 3563
31 15.0/0.8 110 4531 2200 1208 150 3618 150 1650 32 Rp21/2 R1
32 15.0/1.0 4533 1209 3619
33 20.0/0.8 110 5036 2400 1348 200 4108 200 1800 32 Rp3 R1
34 20.0/1.0 5040 1350 4110
35 25.0/0.8 110 6146 2400 1348 200 5068 200 1800 32 Rp3 R1
36 25.0/1.0 6150 1350 5070
37 30.0/0.8 110 6706 2500 1373 200 5603 200 1875 36 Rp3 R1
38 30.0/1.0 6710 1375 5605
39 40.0/0.8 110 8676 2500 1373 200 7413 200 1875 36 Rp3 R1
40 40.0/1.0 8680 1375 7415

Applications of Screw Air Compressor
Jufeng air compressor is widely used in all kinds of industries around the world, including electronics, electricity, water, electricity, environmental protection, petroleum, chemical, mining, metallurgy, pharmaceutical, food, aviation, shipbuilding, military, scientific research, wood, textile, printing, glass, construction, building materials and other fields.

Air compressors can be grouped into three classifications: consumer grade, professional grade and industrial grade.
• Consumer grade air compressors can be described as a pancake or single-stage model. They're used for household tasks like inflating tires and inflatable products and possibly some low-load air tools like staplers and brad guns.

• Professional grade air compressors provide more power and higher pressurized air. They could be two-stage reciprocating models or rotary screw models and can provide more power to run several air tools at once with intermittent use.

• Industrial grade air compressors will be the workhorse of a manufacturing plant or the reliable power source on an oil rig. They are designed to provide a steady flow of compressed air for long periods of time and can take fluctuating surges in use typical in major manufacturing plants. These compressors are built with high-quality components that allow for customization to the specific environment to improve performance, energy efficiency and reliability.

Precautions of Screw Air Compressor
1. Srandard Power: 380V/50HZ/3PH, 415V/220V/60HZ and other voltage can be customized.
2. Starting method: 10A or below direct starting,15A or above star-delta srarting.
3. Working environment temperature: -5℃-45℃;
4. Driven method: Belt driven / Direct driven.
5. Welcome request & inquiry of customized the pressure up to 16 bar
6. The company on product improvement and reserves the right of design improvement parameters are subject to change without prior notice.

Jufeng is an industrial air compressor manufacturer in China, mainly offers rotary screw air compressors and compressed air treatment equipment like air receiver / air tank, refrigerated air dryer, compressed air filter for customers.
