JK-L 2300-Laminating Machine, laminator

JK-L 2300-Laminating Machine, laminator
JK-L 2300-Laminating Machine, laminator
JK-L 2300-Laminating Machine, laminator
JK-L 2300-Laminating Machine, laminator
JK-L 2300-Laminating Machine, laminator
Request a Quote
  • Max. film width: 2300mm
  • Cylinder width: 2100mm
  • Laminating layers: 2-3
  • Applicable materials: flexible materials like tablecloth, non-woven cloth, protective films
  • Laminating speed: 0-60m/min
  • Material roll diameter: 600mm
  • Power consumption: 180KW
Application examples

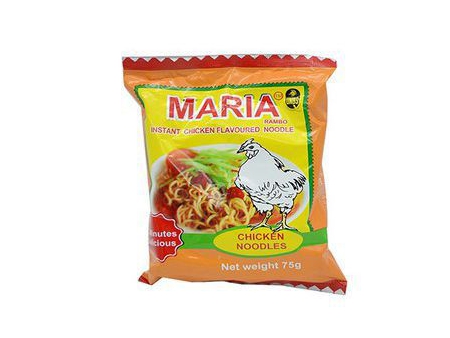

  • Instant Food Packaging

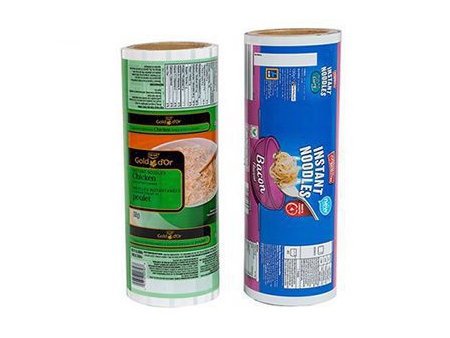

  • Laminated Plastic Packaging

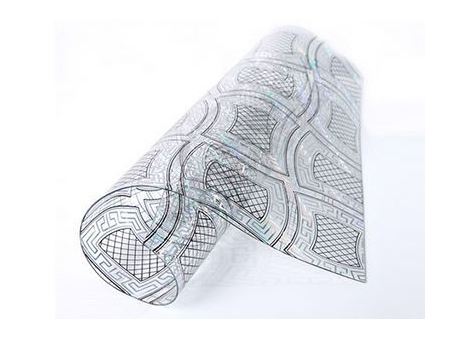

  • Laminated PVC Film

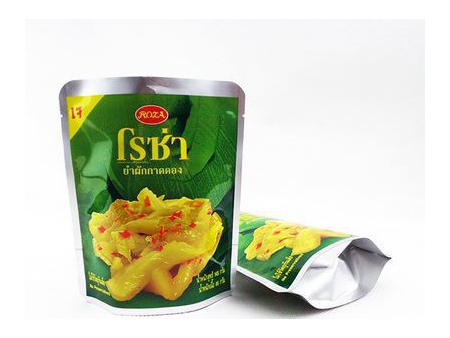

  • Plastic Laminated Bag
Attach protective film to the cloth

Before laminating, an adhesive should be applied between plastic films (PVC, PVDF) and flexible materials (tablecloth, non-woven cloth). After laminating, the laminated cloth is waterproof and wear resistant.

Wide range of applicability

The laminator simultaneously laminates up to three layers with a maximum film width of 2300mm. The laminating machine can be paired with a printing machine and easily switched to an embossing machine by changing the mirror roller into embossing roller.

Main configuration

  • Heating by gas furnace (gas furnace is not provided)
  • stainless steel exhaust fan
  • 3.7kw motor (DongYuan)
  • frequency converter (HuiChuan)
  • PLC system (Mitsubishi)
  • man-machine interface (Weinview)
  • precision pressure regulator (Fujikura)
  • button (Schneider)
  • frequency conversion detector
  • temperature meter
  • low-voltage electrical appliances.

Customization

  • Laminating width: 1-4.5m.
  • Laminating layers: 2-6.
  • All the electrical configurations and heating method can be adjusted according to your requirement.
