JK-L2300-6 Laminator, Laminating Machine

JK-L2300-6 Laminator, Laminating Machine
JK-L2300-6 Laminator, Laminating Machine
JK-L2300-6 Laminator, Laminating Machine
JK-L2300-6 Laminator, Laminating Machine
Request a Quote

The laminating machine is specially designed for the production of clear PVC sheets, PVC strip curtains, etc. In addition, laminating and embossing operations can be synchronously performed after changing the mirror roller in the laminating section into the embossing roll.

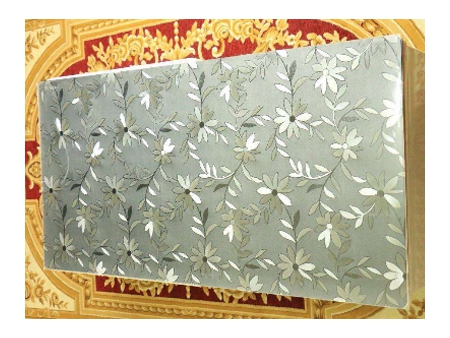

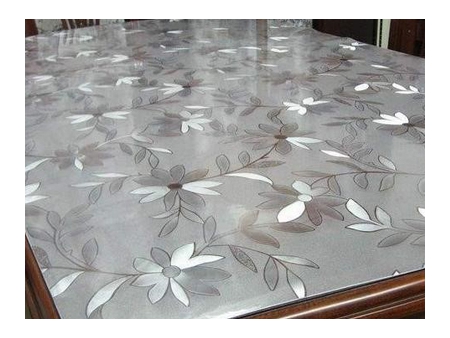

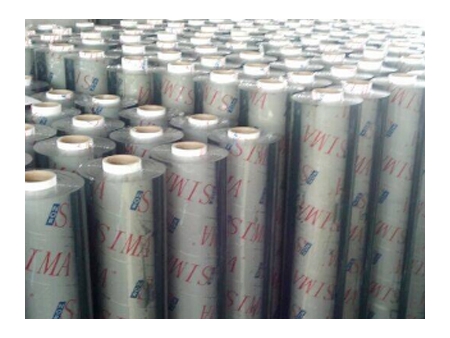

Applications

Specifications
  • Web Width:2200mm
  • Cylinder Diameter: 2300mm
  • Laminated Layer: 2-8 layers
  • Applicable materials: PVC material
  • Laminating Speed: 0-60m/min
  • Unwinding roll diameter: 600mm
  • Heating Method: available with electric heating or thermal oil heating
  • Total Power: 350 kW (electric heating) / 100kW (thermal oil heating)
  • Dimension (LxWxH): 23mx4.4mx3.5m
  • Machine Weight: approx. 60t

Main Configurations

  • 6 unwinder for 2 working stations
  • 6 preheating units
  • 6 laminating units
  • 1 embossing unit
  • 1 cooling unit
  • 1 accumulator
  • 1 winder

Custom Options

  • The laminator can be configured to meet the needs of processing materials with widths of 1.6-3.5m.
  • The laminating machine can be tailor made to achieve the laminated layer up to 8.
