Wireless Surveillance with Wireless Surveillance Digital IP Cameras and Android/iOS App, CM824722

Wireless Surveillance with Wireless Surveillance Digital IP Cameras and Android/iOS App, CM824722
Wireless Surveillance with Wireless Surveillance Digital IP Cameras and Android/iOS App, CM824722
Request a Quote
  • The CM82472 wireless monitors feature a PIR sensor and are designed for motion detection and warm object detection within the monitoring range. These monitors will take pictures or short, 15 second video clips of the movement, and send them to your phone. These monitors support both IOS and Android systems.

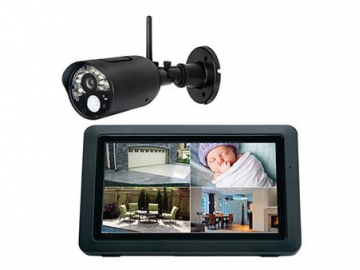

  • This monitor features a 7 inch screen and up to 4 cameras for a display of more than one area on screen. It is widely used for indoor and outdoor security monitoring.
Specifications
Operating Frequency Range 2.400GHz~2.483GHz
TX Power 16dBm (typical)
RX Sensitivity -81dBm
Type of Spread Spectrum Used FHSS
Type of Modulation Used GFSK
Data Rate 4Mbps
Transmitting Range 300m line of sight

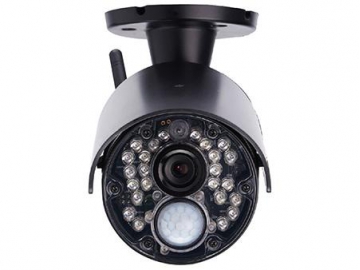

Camera
Image sensor type 1/4" Color 1.0 Megapixel CMOS Image sensor
Effective Pixel 1280 (H) x 720 (V)
Power requirement 9V DC 600mA
Image Resolution Cam x 2 : 720px1 @ 15 fps
Cam x 2 : VGAx2 @ 25 fps
Cam x 4 : QVGAx4 @ 25 fps
/ VGA x 4 @ 15 fps
Lens 3.6mm F2.0
Viewing Angle (Diagonal) 70° (FOV)
IR LED / Night Vision Range 24 LEDs / 850nm, 12m
PIR angle (horizontal) 60°
PIR range (25°C) 5m
Weather proof IP65
Operation temperature -20~40°C
Camera Housing Material ABS
LCD Monitor
LCD Panel size 7 Inch
LCD Resolution 800 RGB (H) x 480 (V)
View Angle H: 140° V: 110°
Operating Temperature 14°F ~ 104°F (-10°C ~ 40°C)
Operating Humidity 0% ~ 85%
Power requirement 5V DC 2A
